Arduino – Nano Every Single Board – DEDB0010
See all products from arduinoAED 101.59 VAT included
Arduino – Nano Every Single Board – DEDB0010
100 in stock
Product Code : SS154686
Brand: Arduino
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

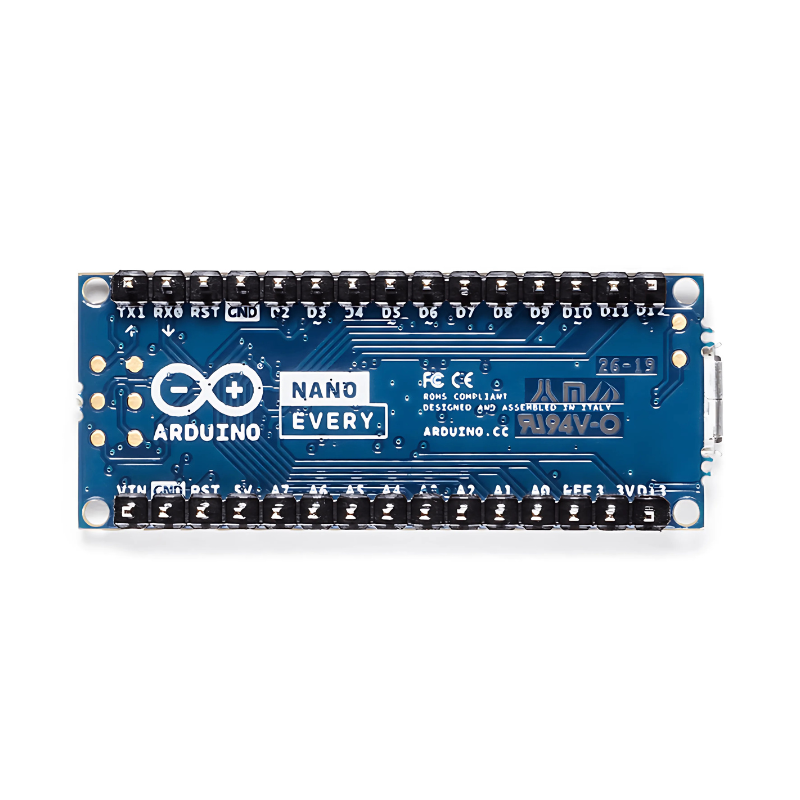

The Arduino Nano Every with headers mounted offers a blend of compact size and powerful features, making it an excellent choice for a wide range of projects, especially those requiring a small and easy-to-use microcontroller board.
Features
- Clock 20MHz, Flash 48KB, SRAM 6KB, EEPROM 256byte.
- Two 15 pins connectors (one on each side) that are pin to pin compatible with the original Arduino Nano
- Power supply architecture based on a high efficiency DC-DC converter allows powering the board at up to 21V and to drive output peripherals with up to 950mA without overheating
Specifications
- Brand: Arduino
- Model: DEDB0010
- Microcontroller: ATmega4809
- Operating Voltage: 5V
- Input Voltage (VIN): 7-21V
- DC Current per I/O Pin: 20 mA
- DC Current for 3.3V Pin: 50 mA
- Clock Speed: 20MHz
- CPU Flash Memory: 48KB
- SRAM: 6KB
- EEPROM: 256 bytes
- PWM Pins: 5 (D3, D5, D6, D9, D10)
- Analog Input Pins: 8 (ADC 10 bit)
- Analog Output Pins: Available only through PWM (no DAC)
- LED_BUILTIN: Pin 13
