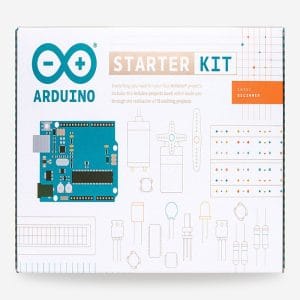

Arduino - Starter Kit EN
AED 495.08 VAT included
Arduino – Mega 2560 REV3
See all products from arduinoAED 253.58 VAT included

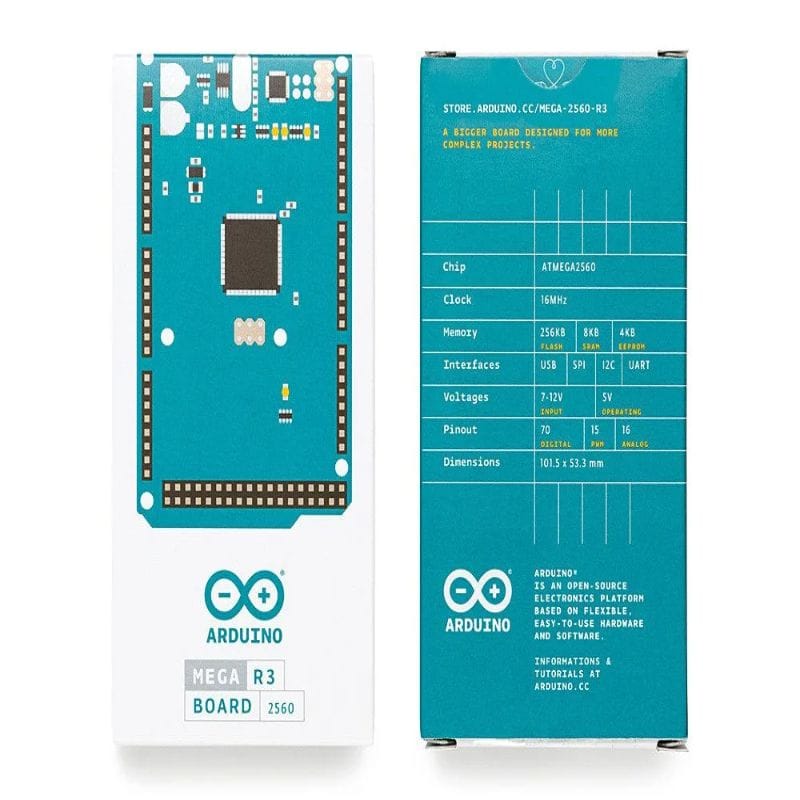

Arduino – Mega 2560 REV3
Product Code : SS149704
Brand: Arduino
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Arduino – Mega 2560 REV3 The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
Features
- The Arduino Mega 2560 is a microcontroller board based on the ATmega2560
- It has 54 digital input/output pins
- 16 analog inputs
Specifications
- Brand: Arduino
- Microcontroller ATmega2560
- Operating Voltage 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limit): 6-20V
- Digital I/O Pins: 54 (of which 15 provide PWM output)
- Analog Input Pins: 16
- DC Current per I/O Pin 20 mA
- DC Current for 3.3V Pin 50 mA
- Flash Memory 256 KB of which 8 KB used by the bootloader
- SRAM 8 KB
- EEPROM 4 KB
- Clock Speed 16 MHz
- LED_BUILTIN 13
- Length 101.52 mm
- Width 53.3 mm
- Weight 37 g
