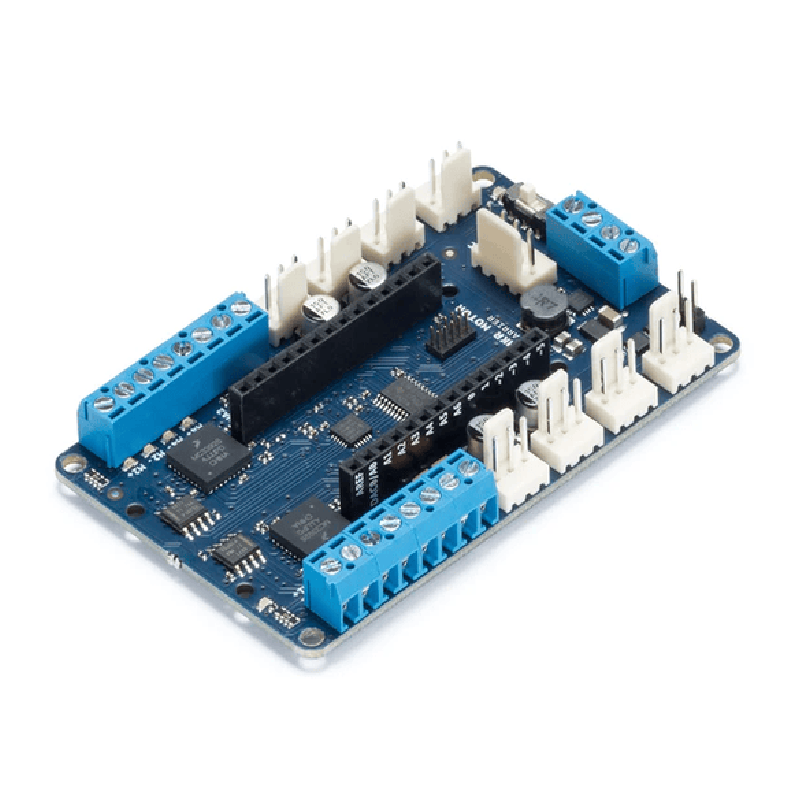

Arduino – MKR Motor Shield – DEDB0098

The MKR Motor Shield is an MKR add-on board designed to control servo, DC, and stepper motors. Compatible with all the boards in the MKR family. Four servo motor outputs. Four DC motor outputs (two high performance two standard performance). Sensing of current feedback for the high-performance motors. Two inputs for encoder sensors. Four inputs for analog sensors (3-pin compatible). Possibility to read the status of the batteries. ON-OFF switch with Power ON LED LiPo battery connector (2S or 3S compatible) and power terminal block for alternative power source. LEDs to visually indicate the direction of the rotation of the DC motors. On-board processor for automated control of some of the outputs I2C connector as a 4-pin male header.
