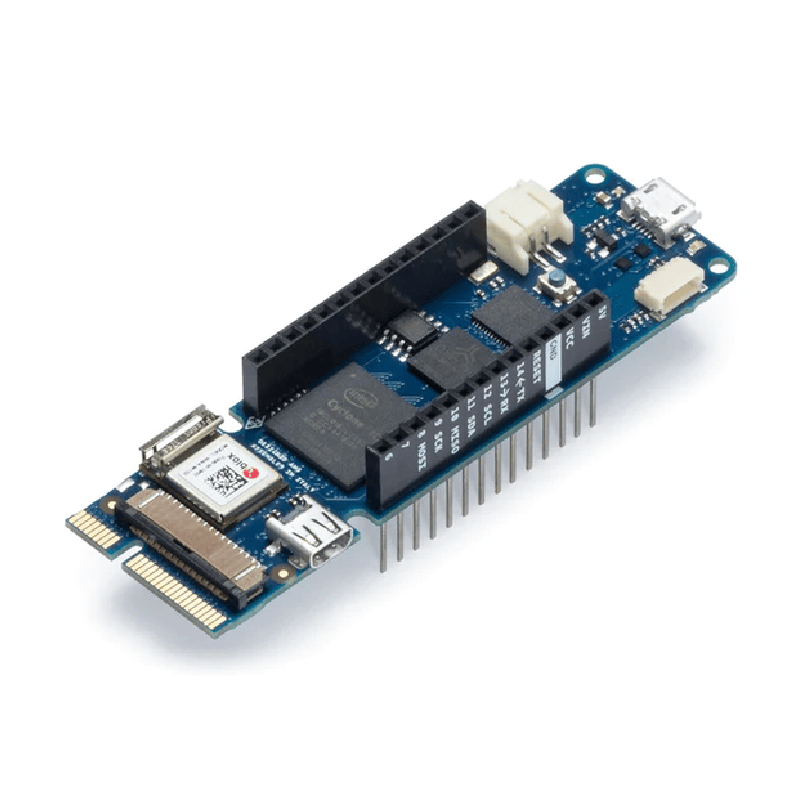

Arduino – MKR Vidor 4000 Development Board, ABX00022 – DEDB0312
100 in stock
Product Code : SS154734
Brand: Arduino
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Arduino MKR VIDOR 4000 is a highly adaptable controller board that allows users to configure its powerful hardware according to project needs. Equipped with an 8 MB SRAM, 2 MB QSPI Flash, Micro HDMI, MIPI camera connectors, and wireless capabilities via U-Blox NINA W10 (WiFi and BLE), its built for versatile applications in IoT, multimedia, and custom hardware control. The board features an FPGA with 16K Logic Elements and 504 KB embedded RAM, allowing for high-speed DSP operations ideal for audio and video processing. The SAMD21 Cortex-M0+ MCU ensures smooth communication with the FPGA, making it perfect for demanding projects requiring speed and flexibility.
Features
- 8 MB SRAM and 2 MB QSPI Flash with 1 MB for user applications
- FPGA with 16K Logic Elements and 504 KB embedded RAM
- Micro HDMI and MIPI camera connectors for multimedia applications
- WiFi and BLE via U-Blox NINA W10 Series
- MKR interface driven by both SAMD21 and FPGA
- Mini PCI Express connector with 25 programmable pins
- Supports UART, (Q)SPI, high-res PWM, I2C, I2S, and Sigma Delta DAC
- High-speed DSP functionality for audio and video
Specifications
- Brand: Arduino
- Model: DEDB0312
- Part: ABX00022
- Flash Memory: 256kB
- SRAM: 32KB
- I/O Pins: 8
- Logic Level: 3.3V
