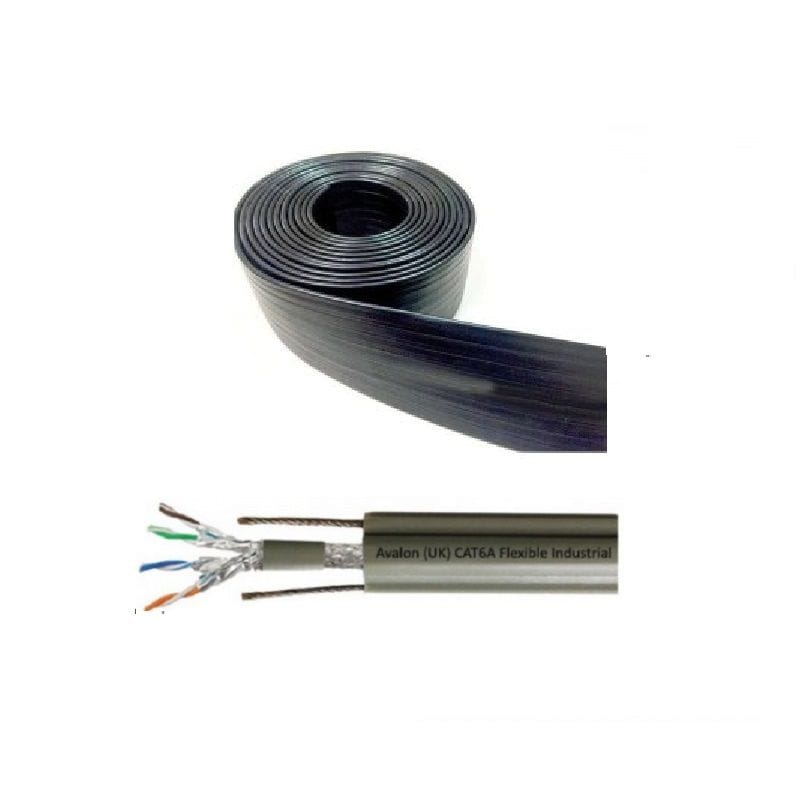

Avalon – 1 x Cat.6A STP Industrial Flexible Elevator Cable, 100 mtr – ANEC6ASTP-100MT
See all products from avalonAED 1,790.25 VAT included
Avalon – 1 x Cat.6A STP Industrial Flexible Elevator Cable, 100 mtr – ANEC6ASTP-100MT
Product Code : SS150744
Seller: Security Supplies
Brand: Avalon
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in UAE
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description

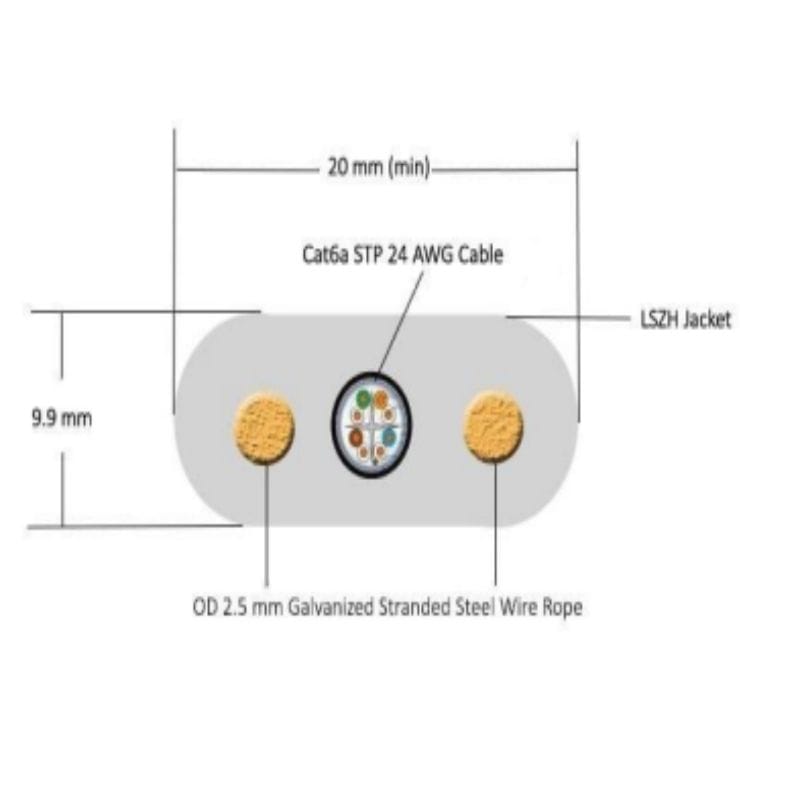

24 AWG /19 Stranded BC conductor, Foam PE insulation, AL/Mylar individual screen, Tinned copper braiding overall screen, galvanized steel wire and LSZH Outer Jacket.
Features
- 24 AWG /19 Stranded BC conductor
- Foam PE insulation
- AL/Mylar individual screen
- Tinned copper braiding overall screen
- Galvanized steel wire and LSZH outer jacket
Specifications
- Brand: Avalon
- Part: ANEC6ASTP-100MT
- Conductor: 19*0.12mm stranded bare copper wire
- Insulation: Foam PE Nominal OD:1.45mm
- Individual Screen: AL/Mylar overall screen
- Tinned copper braiding coverage: ?85% with self-support line galvanized steel wire
- Jacket: LSZH - Flexible outer jacket, Bend Resistant, Fire Retardant & Oil Resistance
- Conductor: DC resistance at 20? ?93.8 ohm/km
- Characteristic Impedance: 100±5ohm @100MHz
- Dielectric Strength: DC1KV for 1min (conductor to conductor, conductor to screen)
- Insulation Resistance @20 ±3?: ?5000M? .km (IEC 60189-1)
