Avalon 24 Core Single Mode UT Indoor / Outdoor Fiber Cable – LSZH Sheath

Name: Avalon 24 Core Single Mode UT Indoor / Outdoor Fiber Cable - LSZH Sheath
SKU: SS11491
Availability: InStock

Questions & Answers (1)

AED 6.14 VAT included

Compare

Product Code : SS11491 Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

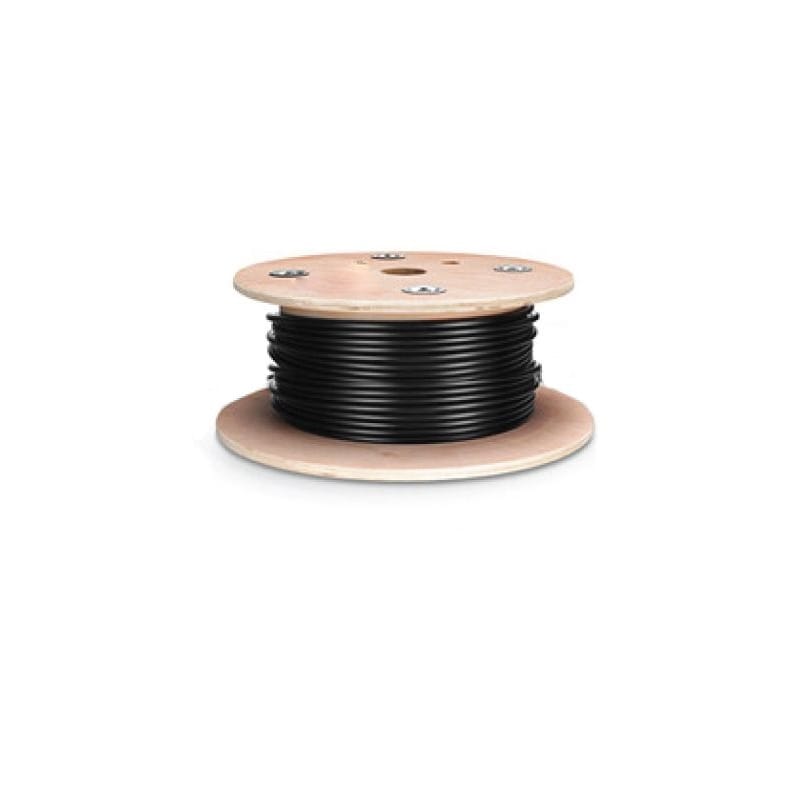

Avalon 24 Core Single Mode UT Indoor / Outdoor Fiber Cable – LSZH Sheath is designed with color coded Singlemode optical fibers located in a central tube. The construction is genuinely designed for Singlemode indoor/outdoor applications. Very easy and quick installation is attributed by its compact, lightweight construction. The outer sheath made of Low Smoke Zero Halogen (LSZH) material is suitable for outdoor and indoor applications.

Features

Installation: -200 C to +700 C
Operation: -200 C to +700 C
Transportation and Storage: -200 C to +700 C
During Installation 20 x D, D = Cable Diameter
Installed 10 x D, D = Cable Diameter
Kink Resistance 10 x D, D = Cable Diameter

Specifications

Brand: Avalon
Product: Fiber Optic Cable
Color of Fiber for 6F: Blue, Orange, Green, Brown, Slate, White
Color of Fiber for 12F: Blue, Orange, Green, Brown, Slate, White, Red Black, Yellow, Violet, Pink, Aqua.
Color of Fiber for 24F: Blue, Orange, Green, Brown, Slate, White, Red Black, Yellow, Violet, Pink, Aqua.
With Black Ring Marking: Blue, Orange, Green, Brown, Slate, White, Red Natural, Yellow, Violet, Pink, Aqua
Primary Coated Fiber (a): Singlemode -652D
Peripheral Strength Member (d): Glass Yarn
Approximate Cable Weight (Kg/Km): 55
