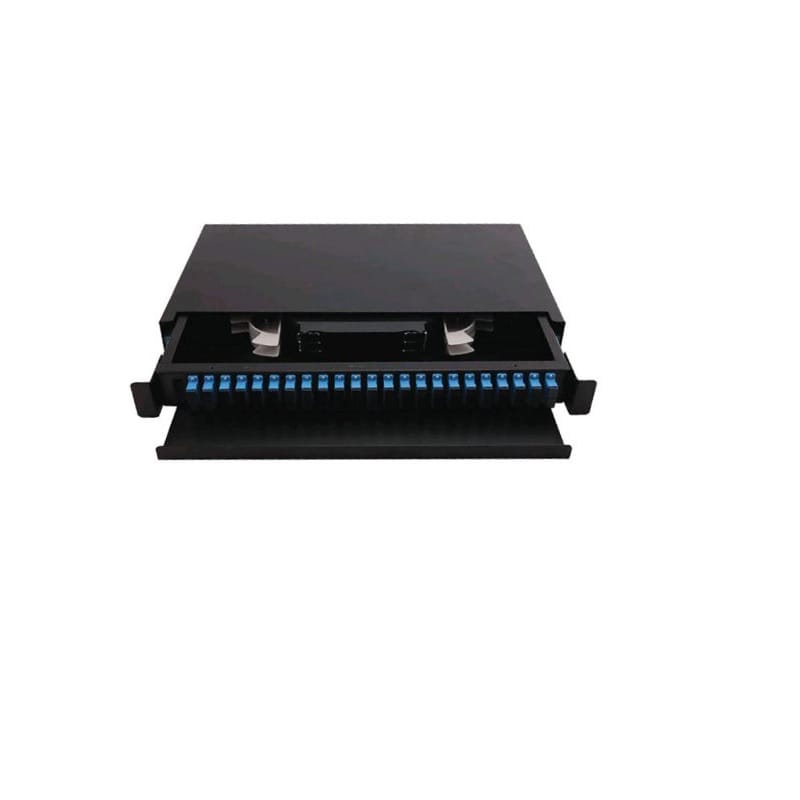

Avalon 24 Port Modular Fiber Patch Panel with splice tray for SC Singlemode or Multimode Adaptors, 19″ Rack Mount – Unloaded
AED 147.00 VAT included
Product Code : SS11553
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Avalon 24 Port Modular Fiber Patch Panel with splice tray for SC Singlemode or Multimode Adaptors, 19″ Rack Mount (Unloaded) – Supports SC Duplex is suitable for SC/LC and E2000 panel and can be ordered for ports such as ST or FC type. The panel can also be pre- loaded completely with the required adapter and simple management kit. The sliding system in its basic form can be supplied with or without adapters. The tray is locked in place and has two plastic catches for simple installation. When fully extended the tray is designed to lower at 45 degrees or move the tray to the side and locks at 10 degrees only. It fully provides a perfect working flat form for simple installation and easy maintenance.
Features
- Recessed Panel and Adapters option with better bend radius
- No exposed screws
- 45 degrees working angle
- Multifunctional rear cable entry options
- Panel and Rack number identification labels
- 4 Cable Entries (2XPG16, 2XPG13.5)
- Telecommunication networks
- FTTH
- LAN, WAN, CATV networks
- Active device termination
Specifications
- Brand: Avalon
- Product: Patch Panel
- U Size: 1U (44.4mm)
- Width: 483mm
- Depth: 200mm
- Weight: 2.8kgs fully
- Material: Cold Rolled Steel
- Colour: Black RAL 9004
- Operating Temperature: -40°c to + 50°c
- Designed in accordance: TIA/EIA 568.C, ISO/IEC 11801, EN 50173,IEC 60304, IEC 61754, EN 297-1
