Avalon AN-24WPDUC13-C19-32A 24 Way PDU 32A with 20 C13 + 4 C19 Sockets, 2 x Circuit Breakers 16A and 3 Mtr IEC60309 type Power Cord
AED 819.00 VAT included
Product Code : SS13857
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Avalon 24 Way PDU 32A with 20 C13 + 4 C19 Sockets, 2 x Circuit Breakers 16A and 3 Mtr IEC60309 type Power Cord
Avalon Power Distribution Units (PDU’s) are used for controlling electrical power in the Data Center. 24 Way PDU has
20 sockets of C13 type and 4 sockets of C19 type and 2 Circuit breakers of 16A and has 3 meter long power plug of
IEC60309 standard.
Features
- Installation method Vertical installation / cable bottom(rearleft）
- Mounting brackets - 70 round hole flap (1 u); - 70 without baffle hole (1 u)
- Power input method 32A IEC60309 plug ; 3 * 6.0 mm squared the power cord【3M】(Non RVV)
- Functional module 1P 16A circuit breaker【2】
- Output unit C13 unlocked socket-1U【20】; C19 unlocked socket - 1 u【4】
- Housing Color Black

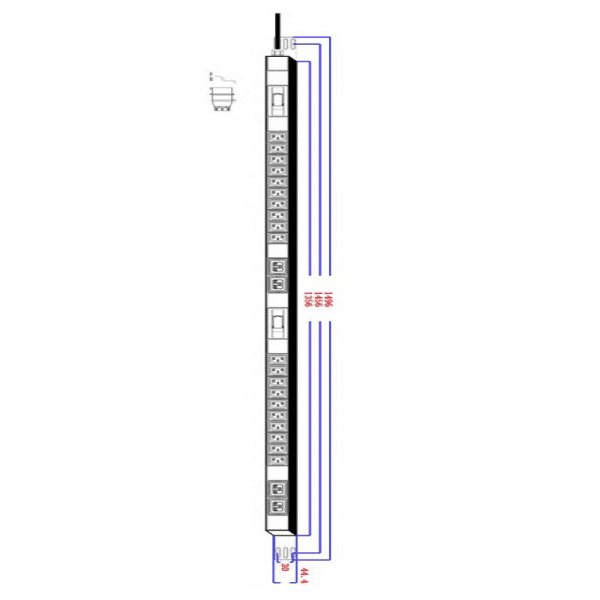

- Product size specifications H x W x H = 1496*44.4*44.4 (mm) ±2mm
- Fixed hole center distance 1456 mm
- Profile length 1356 mm
- Cable fixing method PG terminal (normal)
Specifications
- Rated voltage 220 - 250 v 50/60HZ
- Rated current 32A
- Rated power 8000W
