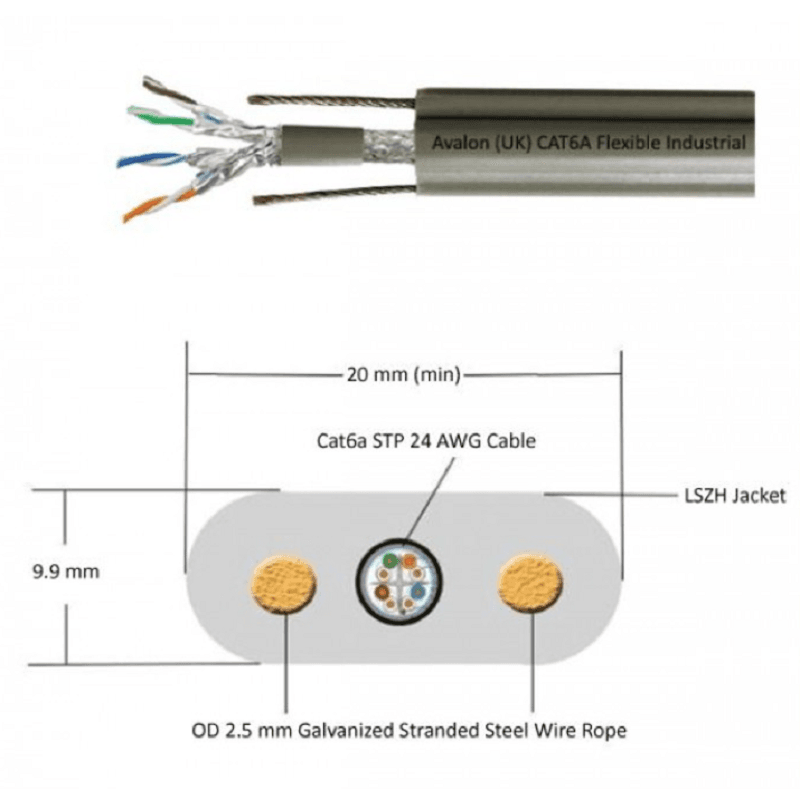

Avalon ANEC6ASTP-300MT Cat6a STP Industrial Flexible Elevator Cable
Specifications – [Cat6a]
Description Value
Conductor
19*0.12mm stranded bare copper wire
Insulation
Foam PE Nominal OD:1.45mm
Color
White, Blue, Orange, Green, Brown
Individual Screen
AL/Mylar overall screen
Tinned copper braiding coverage
≥85% with self-support line galvanized steel wire
Jacket
LSZH – Flexible outer jacket, Bend Resistant, Fire Retardant & Oil Resistance
Height
9.9mm
Width
20mm – 40mm
Marking
Avalon Cat6a STP Industrial Flexible Elevator Cable xxx Meters
Electrical Characteristics
Description Value
Conductor DC resistance at 20℃
≤93.8 ohm/km
Characteristic Impedance
100±5ohm @100MHz
Dielectric Strength
DC1KV for 1min (conductor to conductor, conductor to screen)
Insulation Resistance @20 ±3℃
≥5000MΩ .km (IEC 60189-1)
