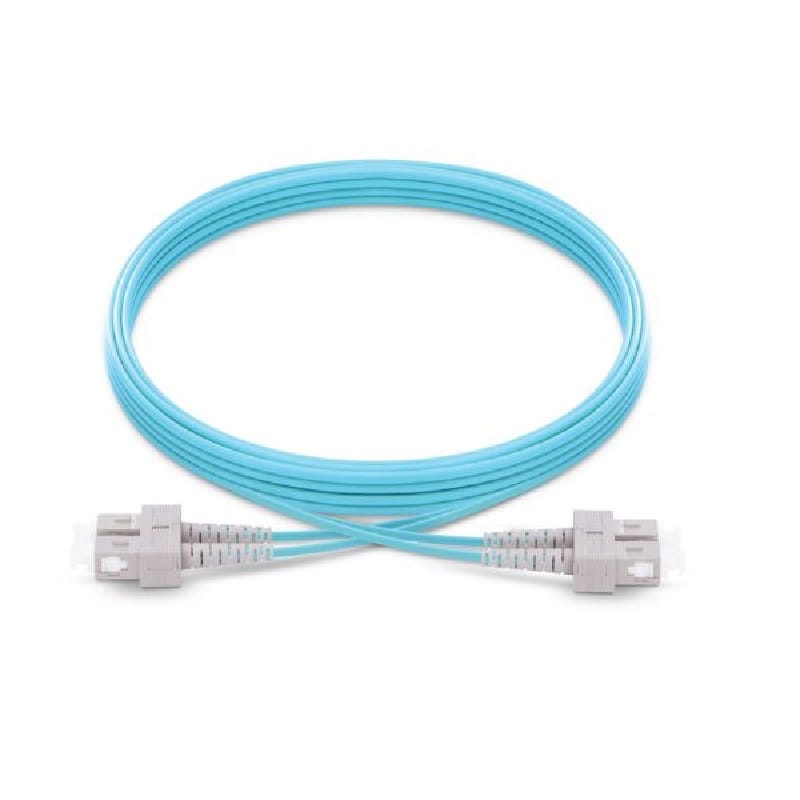

Avalon SC-SC Multimode OM4 Duplex Patch Cord 10 mtr – LSZH
AED 88.73 VAT included
Product Code : SS11550
Seller: Security Supplies
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in UAE
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Avalon SC-SC Multimode OM4 Duplex Patch Cord 10 mtr – LSZH is ideal for high density applications. This fiber patch cord has Zirconia ceramic ferrules with an UPC end face and provides optimum insertion and return loss.
Features
- Compliant with TELCODIA GR-326-Core
- Compliant with JIS C-5973, IEC,TIA/EIA 568-B.3
- Optical performance 100% factory tested Minimum loss
- Telecommunication Networks
- LAN
- CATV Networks
- Active Device Termination
- Data System Networks
Specifications
- Brand: Avalon
- Product: Patch Cord
- Durability: 1000 Matings < 0.2 dB
- Temperature Cycling: —40 — +80 degrees Celsius (42 Cycles) < 0.2 dB
- Humidity Cycling: 75 degrees Celsius, 95%/336hr < 0.2 dB
- Vibration: 10 — 55 HZ ( 2 hours) < 0.2 dB
- Flex Test: 0 to 90 degrees to 0 to 90, 5kgf (100 cycles) < 0.2 dB
- Twist Test: 0.9mm :0.75kgf, 2.0mm:1.53 kg < 0.2 dB
- Straight Pull Test: 100 N Load < 0.2 dB
- Impact: 1.5m drop, 8 times < 0.2 dB
