CMX – 12 Zone Keypad for Remote Microphone – EVAC-12KD
Product Code : SS149794
Brand: CMX
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

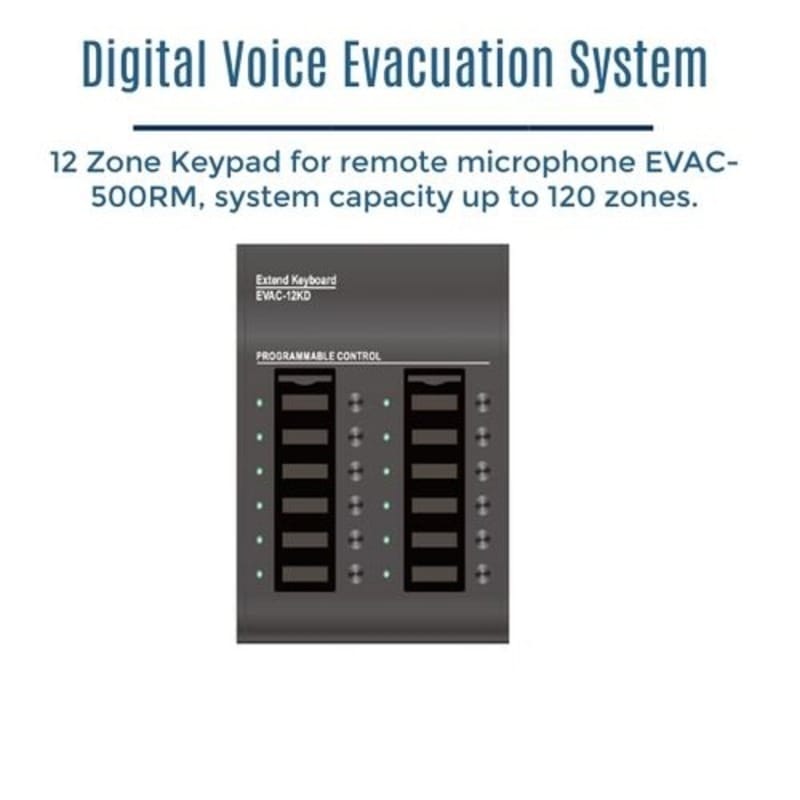

The EN54-16 voice alarm & evacuation system EVAC-12KD Zone Keypad is an extension to the EVAC-500RM Voice Alarm System Remote Microphone that adds additional zone-select keys. It has the same stable metal base as the call station. In addition to tabletop use, the special design allows it to be neatly flush-mounted in desktops.
Features
- Each zone keypad supports 12 zone selections
- The keypad is used to expand the capacity of remote microphone for multiple-zones
- Connecting one of these keypads to12 zones or zone groups that can be selected
- Up to 11 keypads can be added to an EVAC-500RM Remote Microphone
- LEDs on the keypad indicate the active zones
- 12 zone selection keys and 12 zone selection LEDs
- Total system capacity of 120 zones
- Keypad internal line will be monitored, fault will be indicated by LED and buzzer
Specifications
- Brand: CMX
- Code: EVAC-12KD
- Power Consumption: 3W
- Zone Capacity: 12 Zones
- System Capacity: 11 Remote microphones
- Frequency Response: 80Hz~16kHz
- THD: <1% at RMS,1KHz
- S/N Ratio: >70dB
- Operating Temp: -20? to +70?
- Power Supply: DC24V, ñ20%
- Humidity: <95% no condensation
