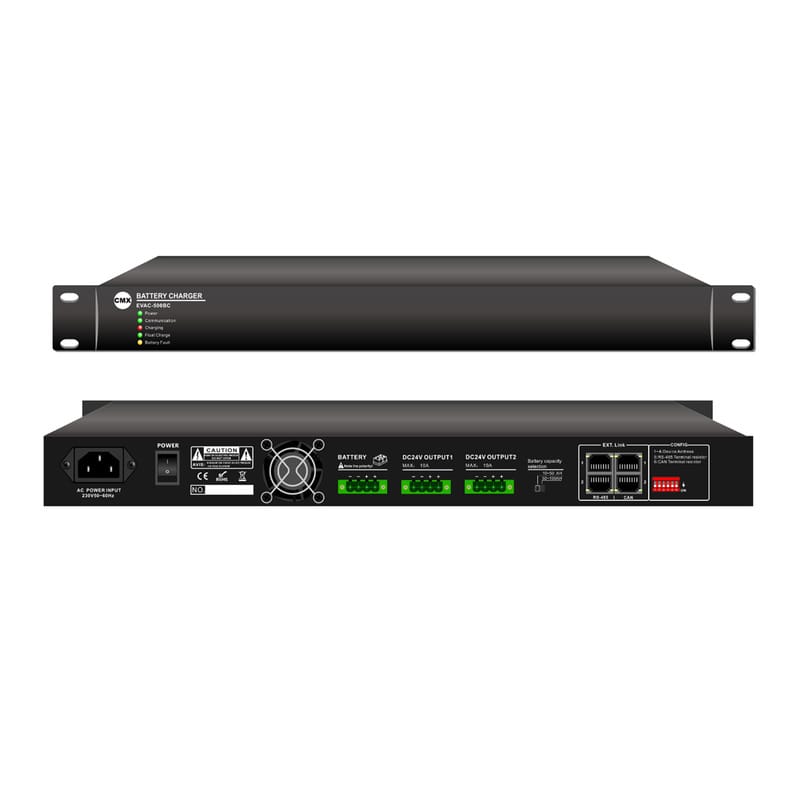

CMX – 24V DC Battery Charger and Power Supply – EVAC-500BC

Name: CMX - 24V DC Battery Charger and Power Supply - EVAC-500BC
SKU: SS149797
Price: 1376.28 AED
Availability: InStock

See all products from cmx

AED 1,376.28 VAT included

Compare

Product Code : SS149797 Brand: CMX Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Auto switch into DC power supply when AC power fails. Select auto/manual charging mode automatically. Storage battery failure, over voltage, over-heat and over time charging detection. Automatic temperature control fan and over heat protection. Built-in battery charge management and monitoring circuit. When connected to AC power, DC24V will be off automatically. Storage battery support two or one DC 24V lead-acid battery. Selection charging mode automatically to ensure safety charging and service life. Pre-charge-constant current-trickle charge. High charging efficiency and restore efficiency. Support multiple volumetric batteryó200Ah. With ID pre-set its zone number up to 200 units. With RS485 to communicate with third party system.

Features

Auto switch into DC power supply when AC power fails
Select auto/manual charging mode automatically
Storage battery failure, over voltage, over-heat and over time charging detection
Automatic temperature control fan and over heat protection
Built-in battery charge management and monitoring circuit
When connected to AC power, DC24V will be off automatically
Storage battery support two or one DC 24V lead-acid battery
Selection charging mode automatically to ensure safety charging and service life
Pre-charge-constant current-trickle charge
High charging efficiency and restore efficiency

Specifications

Brand: CMX
Code: EVAC-500BC
Power Supply: 220V-240V, 50/60Hz
AC Maximum Current: 2A
AC Fuse: 250V/3.15A, low speed type
DC Power Output: 24V DC battery
DC Maximum Current: 10A+10A
Maximum Charging Current: 10A adjustable
Connector: Two battery inputs, two 24V DC outputs, two RS485 and two CAN inputs, Battery capacity selector and ID selector
Cooling System: Speed controlled cooling fan
Operation Temp: +5? to +45?
Operation Humidity: <95%
