CMX – IP Network Powered Speaker – DI-9723

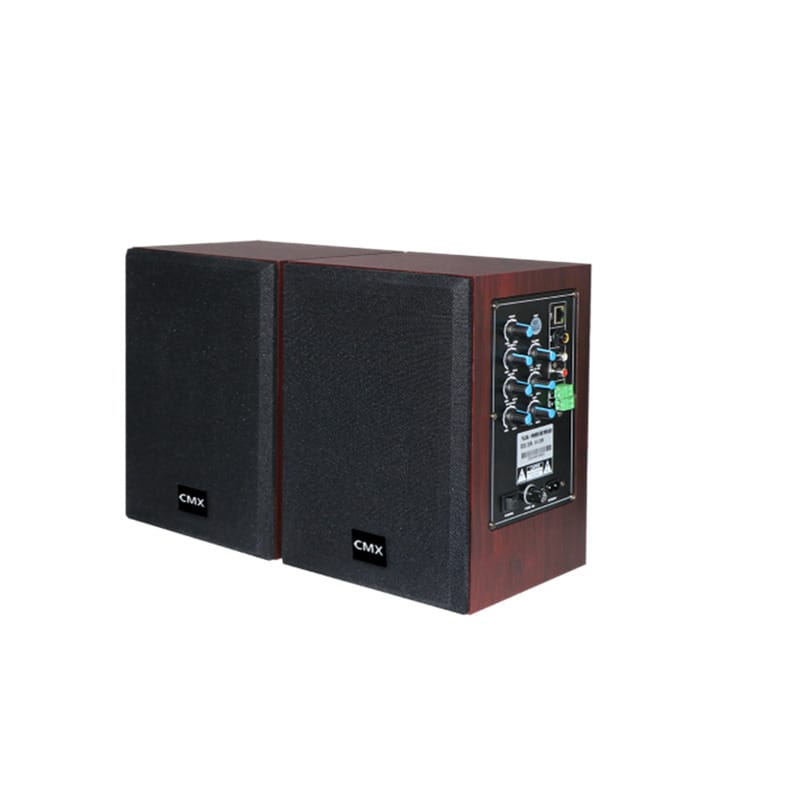

IP-9723 is IP powered speaker is an all in one network audio system solution, which is the most convenient audio over internet solution of which no signal cable and no speaker cable wiring is needed. The simplest connection is plug in the RJ45 communication port via CAT6 cable over existing LAN/WAN/Ethernet network, input source, paralleled connect with another passive speaker DI-9723F, power on, then it can communicate with the server and enable all functions of a network audio system. IP-9723 The IP network active speaker is built-in audio decoder, an active speaker with stereo 20W+20W digital amplifier to power another 20W passive speaker DI-9723F. The connectors of this active speaker include one communication control port by RJ45, one 20w power output to amplify another passive speaker, AC power switch, one status and one power indicators. Aux & Mic input & attenuators, with silent/bass/treble/master/Echo attenuators, thus external microphone or media player from local room could be played via this IP loudspeaker.
