CMX – Power Amplifier, RMS 500W – DA-500
AED 1,629.58 VAT included

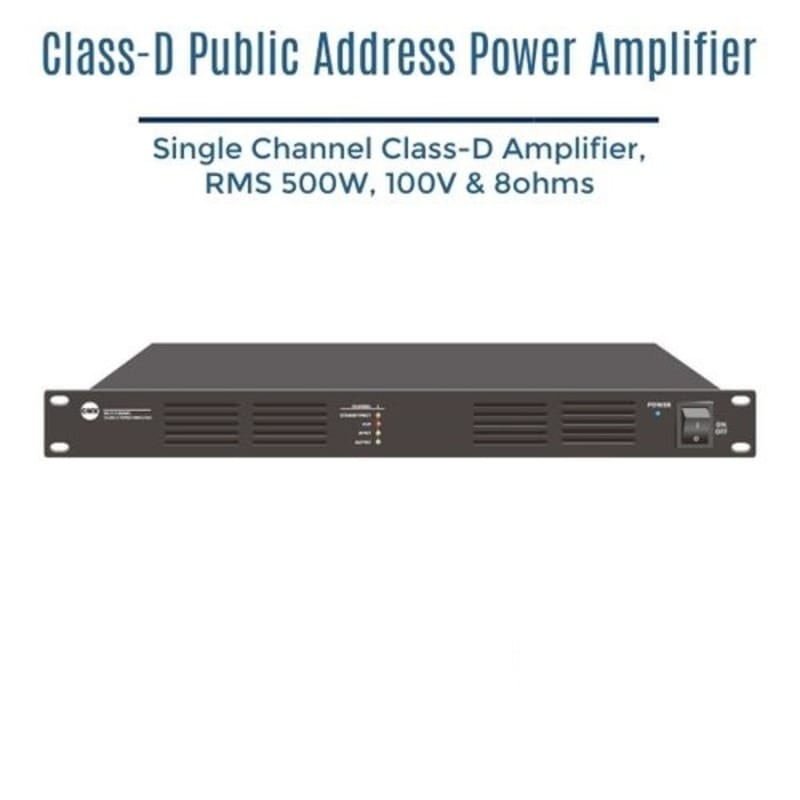

CMX – Power Amplifier, RMS 500W – DA-500
Product Code : SS149825
Brand: CMX
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Switching power technology digital power amplifier. Class-D public address power amplifier of minimum power consumption. 1RU height for less rack space and less heat generation. Single channel public address power amplifier into 19? rack mount unit. Rated power output at 500W. Speaker outputs 8ê/100V. Balanced line input by phoenix connector. Each input with separate gain control. Each channel with high-cut filter. Built-in auto standby feature to save power consumption. Separate indicators for protection, clip, input and output. Complete short circuit, overload, high temp, clip and DC protection. Wide AC input switchable between 115V and 230V. 24V DC input is included.
Features
- Switching power technology digital power amplifier
- Class-D public address power amplifier of minimum power consumption
- 1RU height for less rack space and less heat generation
- Single channel public address power amplifier into 19? rack mount unit
- Rated power output at 500W
- Speaker outputs 8ê/100V
- Balanced line input by phoenix connector
- Each input with separate gain control
- Each channel with high-cut filter
- Built-in auto standby feature to save power consumption
Specifications
- Brand: CMX
- Code: DA-500
- Rated Power Output: 500W
- Speaker Output: 8ê & 100V
- Frequency Response: L/H Cut OFF 20Hz-20KHz (+1/-2dB), L/H Cut ON 70Hz-10KHz (+1/-3dB)
- Input: 0.775V, 0dBu, balanced phoenix connector
- Input Impedance: 10Kê
- THD: <0.1% (1KHz/-3dBv, 100W)
- S/N Ratio: >80dB
- Crosstalk: >60dB, 1KHz, Max output
- Power Consumption: 550W
- Power Supply: AC input switchable between 115V & 230V, 50-60Hz 24V DC input included
