CMX – Remote Paging Microphone – EVAC-500RM
Product Code : SS149793
Brand: CMX
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

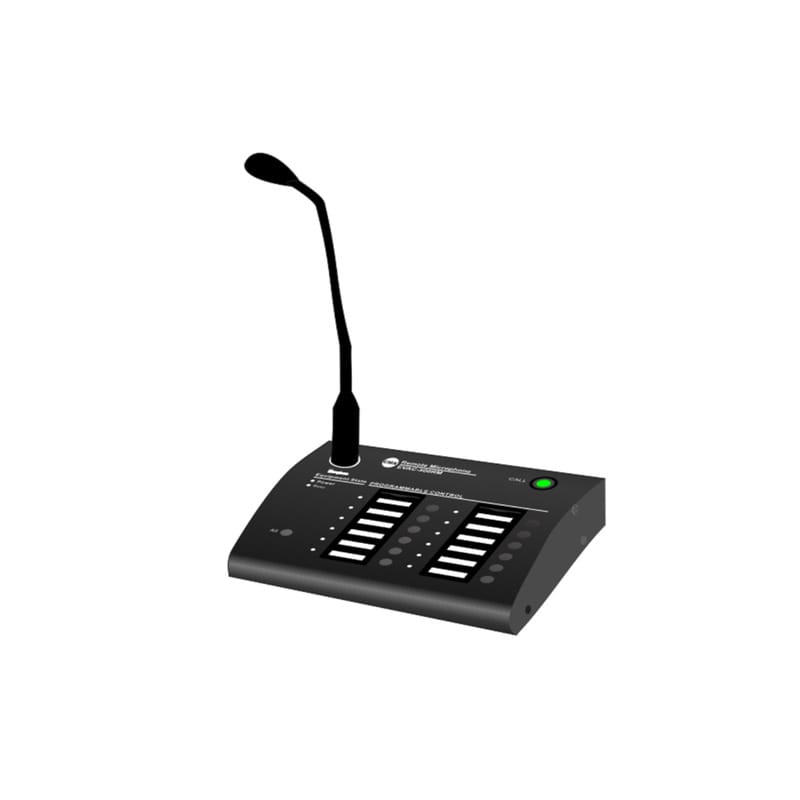

The EVAC-500RM remote microphone or call station is EN54-16 certified and designed exclusively for EVAC-500 public address & voice evacuation system. The remote microphone is used for business and commercial live announcement to selected zones or all zones. The remote microphone is designed of 12 zone buttons with busy & working indicators. One or multiple external 12 zone expansion keypad EVAC-12KD could be cascaded together for up to 120 zone operation. Up to 32 units of remote microphone could be connected to the voice evacuation system via standard, shielded CAT?6 cable and RJ45 connectors in a redundancy loop up to 600 meters. The talk button maybe a PTT or lock type pre-set by the dipswitch on the rear of the microphone. Green LED indicates the microphone and zone active status. The remote microphone is 24VDC powered by the EVAC-500 controller.
Features
- Remote microphone or call station of voice evacuation system EVAC-500
- EN54-16 Certified fireman?s microphone
- Business & commercial zone live announcement use
- Multiple zone, single zone & all zone paging
- Each microphone of 12 zone capacity
- Up to 120 zones by cascaded the zone keypad EVAC-12KD
- Support 32 remote microphones of loop redundancy connection
- The remote microphone unit is fully real time monitored
- Support PPT and lock type two modes
Specifications
- Brand: CMX
- Code: EVAC-500RM
- Power Consumption: 3W
- Zone Capacity: 12 Zones
- System Capacity: 32 Remote microphones
- Line Inputs: 350mV, 10kê
- Mic Input: 5mV, 600ê
- Frequency Response: 80Hz~16kHz
- THD: <1% at RMS,1KHz
- S/N Ratio: >70dB
- Operating Temp: -20? to +70?
- Power Supply: DC24V, ñ20%
- Humidity: <95% no condensation
