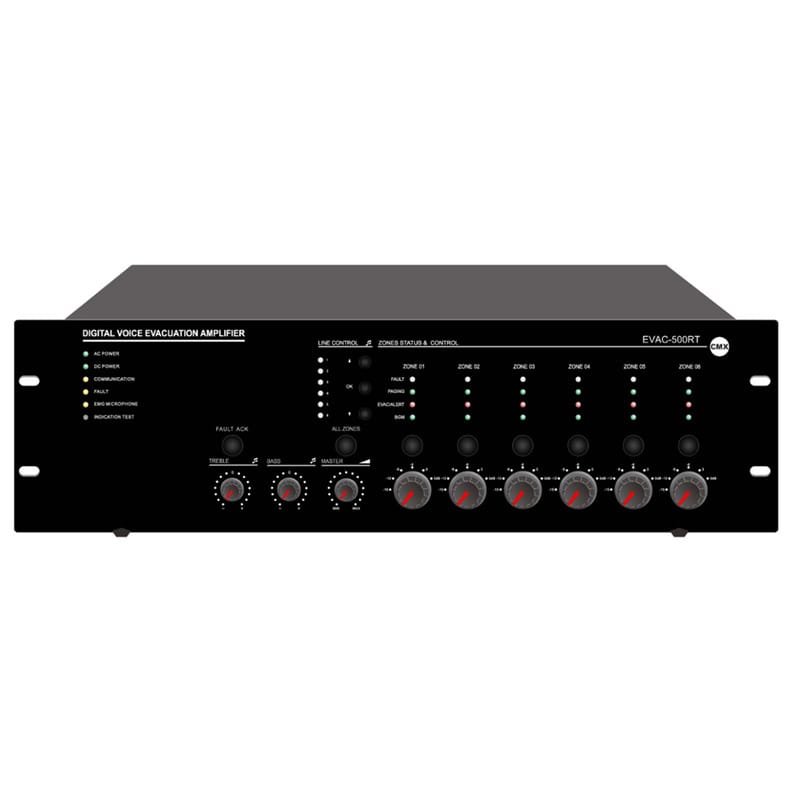

CMX – Voice Evacuation Router – EVAC-500RT

Name: CMX - Voice Evacuation Router - EVAC-500RT
SKU: SS149792
Price: 3342.65 AED
Availability: InStock

See all products from cmx

AED 3,342.65 VAT included

Compare

Product Code : SS149792 Brand: CMX Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The EVAC-500RT voice evacuation router is one of the most important equipments of EN54-16 certified public address & voice evacuation system. The all in one voice alarm & evacuation router with same features of voice evacuation controller EVAC-500 which includes zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier and fire alarm interface, while all main signals are feed from the master controller. The voice evacuation router is innovated with most advanced DSP (digital signal processor) to ensure its hi-fi audio performance and superior signal processing in case of commercial announcement and emergency evacuation. Each router built-in 6 zone speaker outputs, rated power output at 500W. The voice evacuation router shall be pre-set through the supplied software over microphone number, zone number, zone loading, speaker monitoring, fire alarm mode, alert/EVAC message zone output, AC/DC etc, then synchronized the setting to master controller and router.

Features

EN54-16 certification No. I/ISEETC. 000620190305
Digital voice evacuation system all in one router
Integration of voice evacuation router, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier and fire alarm interface
Same features of master controller EVAC-500 while all main signals are feed from the master controller
Auto broadcasting EVAC and alert 256 voice messages to pre-set zones
AB speaker line surveillance to avoid any speaker line failure
Back-up power amplifier management
Up to 120 zones by cascaded with master controller EVAC-500
Redundant network cabling backup through CAT6 cable loop connection
8 supervised control inputs & 8 control outputs, 1 fault, 1 reset & 1 EVAC relay outs

Specifications

Brand: CMX
Code: EVAC-500RT
Rated Power Output: 500W
Fireman Microphone: 5Mv, 600ê
Frequency Response: 80Hz~20kHz
THD: <1% at RMS,1KHz
S/N Ratio: >70dB
Speaker Output: 100V AB 6 zone speaker outputs
REC Output: 200mV
Event Record: HEX format, Hard Flash memory, events up to 1000 records, 10 years valid
Power Consumption: 650W
Power Supply: AC230V or 115V & 24V DC inputs, 50-60HZ
AC Fuse: 250V/6.3A, slow type and restorable fuse
