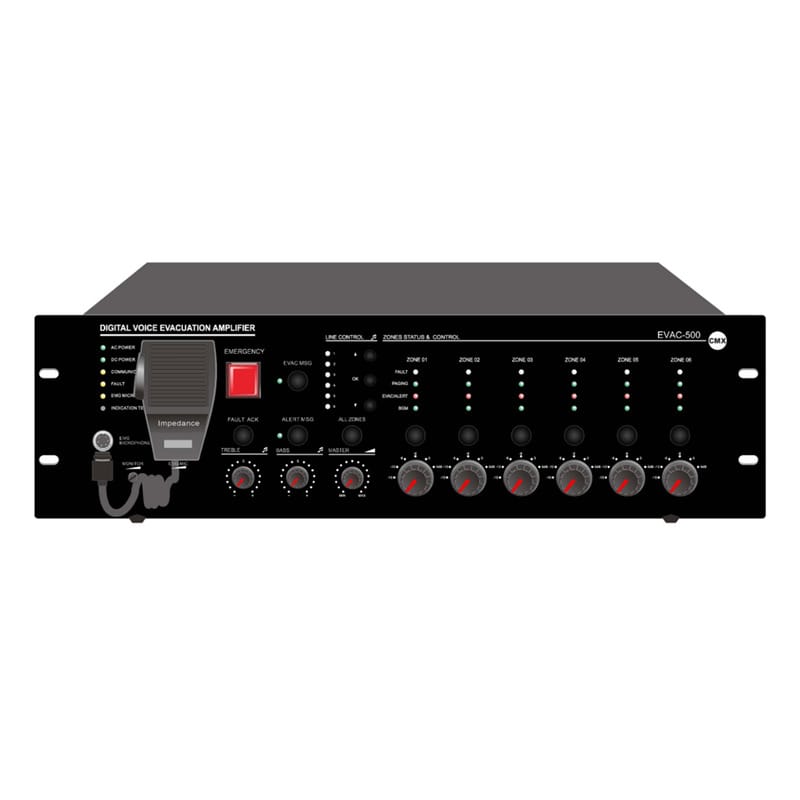

CMX – Voice Evacuation Controller EVAC-500 – EVAC-500

Name: CMX - Voice Evacuation Controller EVAC-500 - EVAC-500
SKU: SS149790
Price: 3688.30 AED
Availability: InStock

See all products from cmx

AED 3,688.30 VAT included

Compare

Product Code : SS149790 Brand: CMX Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The EVAC-500 voice evacuation controller is EN54-16 certified public address & voice evacuation system. The all in one voice alarm & evacuation controller built-in remote PC software, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier, voice recorder, SD card, emergency microphone and fire alarm interface. The voice evacuation controller is innovated with most advanced DSP (digital signal processor) to ensure its hi-fi audio performance and superior signal processing in case of commercial announcement and emergency evacuation.

Features

EN54-16 certification No. I/ISEETC. 000620190305
Digital voice evacuation system all in one controller
Integration of voice evacuation controller, remote PC software, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier, voice recorder, SD card, emergency microphone and fire alarm interface
Auto broadcasting EVAC and alert 256 voice messages to pre-set zones
Customized alert, evacuation & business message stored at SD card
AB speaker line surveillance to avoid any speaker line failure
Back-up power amplifier management
Up to 120 zones by cascaded more router EVAC-240RT
Support 32 units of remote paging microphone EVAC-500RM
Support external connection of fireman microphone EVAC-500FM

Specifications

Brand: CMX
Code: EVAC-500
Rated Power Output: 500W
Fireman Microphone: 5Mv, 600ê
Line 1-2 Inputs: 385mV, 10kê balanced Combo XLR
Line 3-6 Inputs: 350mV, 10kê, RCA
Frequency Response: 80Hz~20kHz
THD:?1% at RMS,1KHz
S/N Ratio: >70dB
Speaker Output: 100V AB 6 zone speaker outputs
REC Output: 200mV
Control Input & Output: 8 control inputs: Max 3.3V (voltage mode) or 0V closed contact; 8 control outputs: 0V closed contact; 1 fault, 1 reset & 1 EVAC relay outs
Voice Message: MP3 or WMA format, two separate players of SD card, programmable voice message up to 256, 10 years valid
Event Record: HEX format, Hard Flash memory, events up to 1000 records, 10 years valid
Operation Envr: Operation Temp: +5? ~ +40?; Store Temp: -20? ~ +70?; Operation Humidity: <95%
Power Consumption: 650W
Power Supply: AC230V or 115V & 24V DC inputs, 50-60HZ
