YD-601 Basic wall mounted door holder
See all products from elockAED 163.80 VAT included

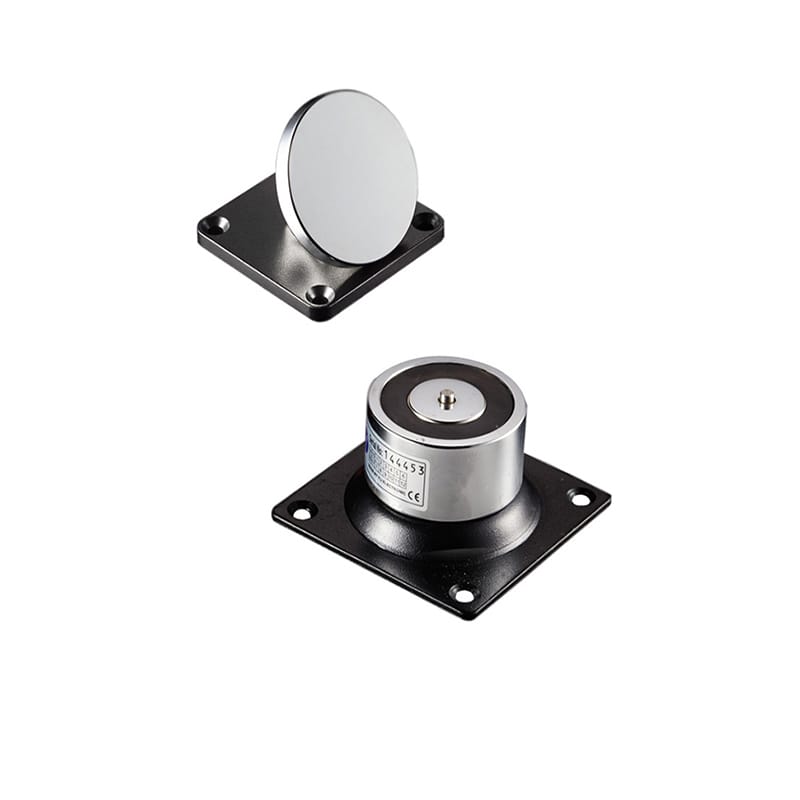

YD-601 is a standard type wall mount door holder which adopts low power consumption that makes it more environments friendly and more durable. Professional anti-residual magnetism design ensures highest security.
Product Code : SS10334
Brand: Elock
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
YD-601 is a standard type wall mount door holder which adopts low power consumption that makes it more environments friendly and more durable. Professional anti-residual magnetism design ensures highest security. It will release automatically the fire door when fire alarm. It also contains build-out release button for testing and build-in MOV which reverse current protection
Features
- Holding force is 50KG (110Lbs)
- Finishes for Shell High Temperature Paint and Environmental Protection Zinc
- Finishes for Armature Zinc
- Suitable for All kind of single and double smoke proof Doors
Specifications
- Dimensions : L80 x W80 x H40 (mm)
- Current Draw : 12V/140mA 24V/70mA
- Surface Temp : ?+20?
- Operating Temp : -10?+55?(14-131F)
- Suitable Humidity : 0~90%(relative humidity)
- Weight : 0.85 KG
