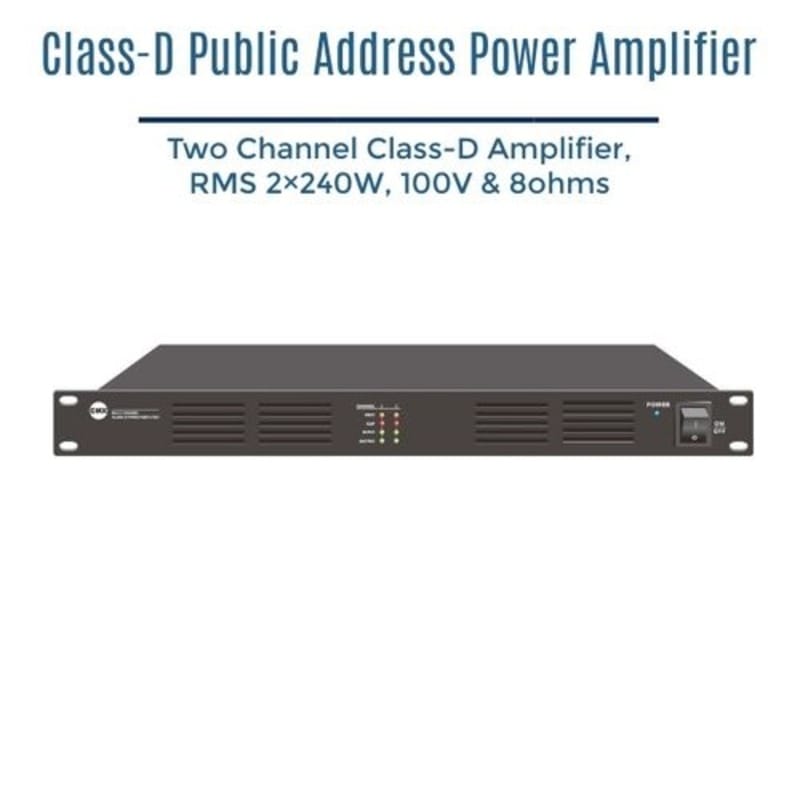

CMX – Two Channel Class-D Power Amplifier, 240W – DA-2240

Name: CMX - Two Channel Class-D Power Amplifier, 240W - DA-2240
SKU: SS149827
Price: 1454.40 AED
Availability: InStock

See all products from cmx

AED 1,454.40 VAT included

Compare

Product Code : SS149827 Brand: CMX Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Switching power technology digital power amplifier. Class-D PA power amplifier of minimum power consumption. 1RU height for less rack space and less heat generation. Two channel power amplifier into 19? rack mount unit. Rated power output at 2x240W. Two channel separate speaker outputs 8ê/100V. Balanced line input by phoenix connector for two channels. Each input with separate gain control. Each two channel with high-cut filter. Built-in auto standby feature to save power consumption. Separate two channel indicators for protection, clip, input and output. Complete short circuit, overload, high temp, clip and DC protection. Wide AC input switchable between 115V and 230V. 24V DC input is included.

Features

Switching power technology digital power amplifier
Class-D PA power amplifier of minimum power consumption
1RU height for less rack space and less heat generation
Two channel power amplifier into 19? rack mount unit
Rated power output at 2x240W
Two channel separate speaker outputs 8ê/100V
Balanced line input by phoenix connector for two channels
Each input with separate gain control
Each two channel with high-cut filter
Built-in auto standby feature to save power consumption

Specifications

Brand: CMX
Code: DA-2240
Rated Power Output: 2x240W
Speaker Output: 8ê & 100V
Frequency Response: L/H Cut OFF 20Hz-20KHz (+1/-2dB), L/H Cut ON 70Hz-10KHz (+1/-3dB)
Input: 0.775V, 0dBu, balanced phoenix connector by two channels
Input Impedance: 10Kê
THD: <0.1% (1KHz/-3dBv, 100W)
S/N Ratio: >80dB
Crosstalk: >60dB, 1KHz, Max output
Power Consumption: 550W
Power Supply: AC input switchable between 115V & 230V, 50-60Hz, 24V DC input included.
