Description

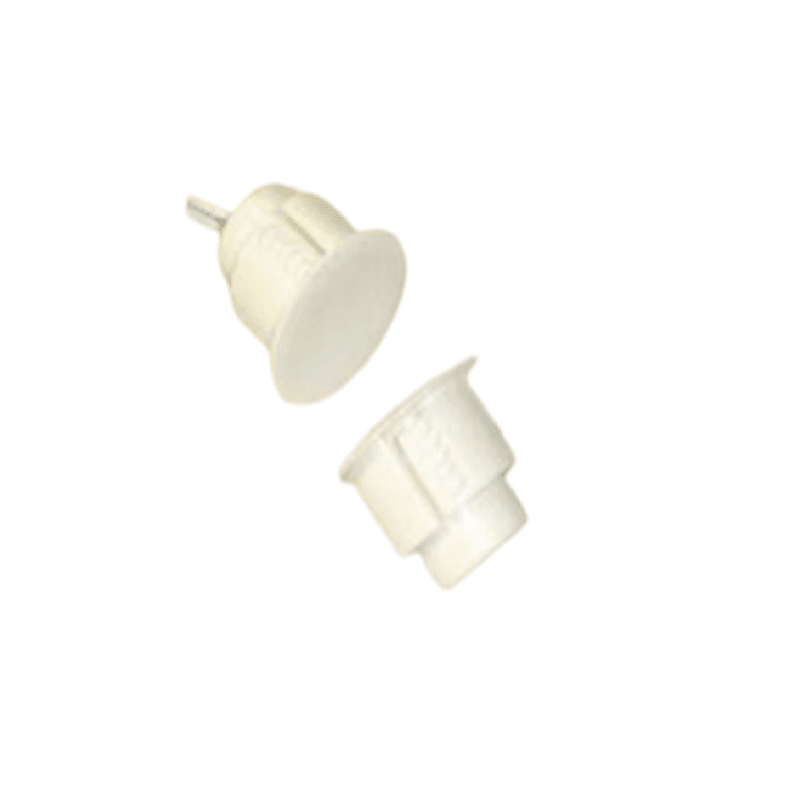

DCB036-Series
The DCB036-Series recessed mount magnetic contacts are designed for use in installations where a small, sealed unit is required. The reed switch is totally encapsulated in an exclusive polyurethane potting compound preventing moisture from entering the switch and causing false alarms.
Specifications
Contact Type: Closed Loop Contact Rating :Breakdown Voltage 100v / Max.Switch Current 0.5A Opera. Gap:20-30mm Housing: White ,Brown ,Grey ABS
CE,FCC,ROHS recessed mounted switch, ABS case, white or brown color
Loop type Reed Form Operation gap(mm) Max Cur./Vol./Power/Init.Ress(A/VDC/W/m (2) Closed FomiA 20-30 0.5A/100V/10W/200m 0 Open From B 20-30 0.2A/30V/3W/200m Q
COM NC& NO 20-30 0.2A/30V/3W/200m SI
