DFRobot – IO Expansion HAT for Raspberry Pi 4B/3B+ – DEDB0238
100 in stock
Product Code : SS155035
Brand: DFRobot
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

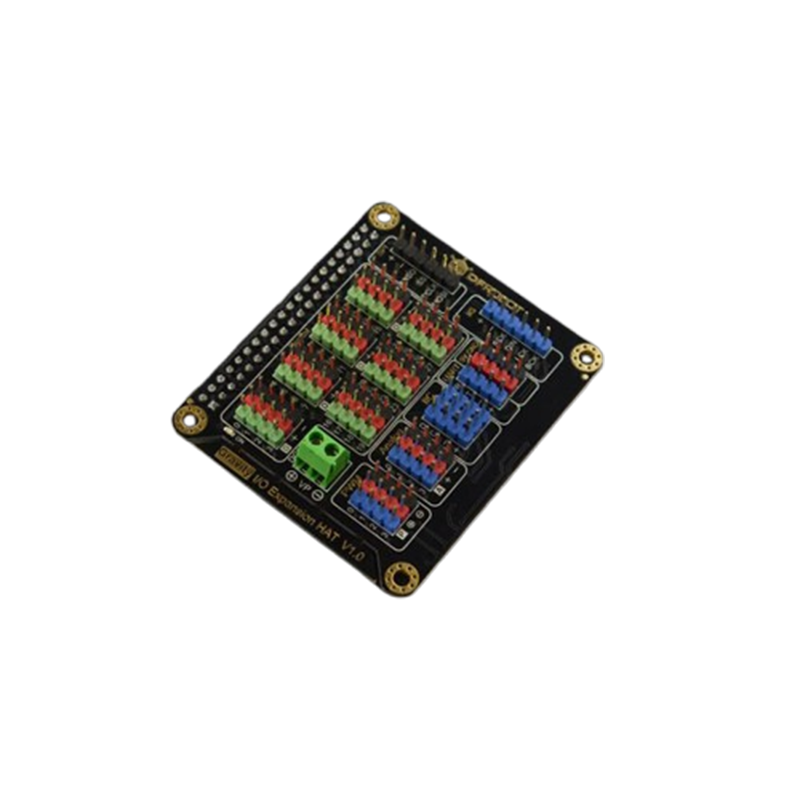

IO expansion hAT for Raspberry Pi 4B and Raspberry Pi 3B. Leads out all of the IO ports on Raspberry Pi including digital port, analog port, PWM, I2C, UART, SPI, and IIS. Compatible with DFRobot Gravity Series frees users from complicated connection work. Supports sensor and module of 3.3V power supply, 5V power supply, and 3.3V level, PWM external power supply (6~12V) and controlling multiple servos.
Features
- IO Expansion HAT for Raspberry Pi 4B and Raspberry Pi 3B
- Leads out all of the IO ports on Raspberry Pi including digital port, analog port, PWM, I2C, UART, SPI, and IIS
- Compatible with DFRobot Gravity Series frees users from complicated connection work
- Supports sensor and module of 3.3V power supply, 5V power supply, and 3.3V level, PWM external power supply (6~12V) and controlling multiple servos
Specifications
- Brand: DFRobot
- Model: DEDB0238
- Operating Voltage: 5V
- PWM Port External Power: 6-12V
- Sensor Interface External Power: 3.3V
- Dimension: 65 x 56 mm/2.56 x 2.20
