DFRobot – Ethernet Shield for Arduino, W5200 – DEDB0275

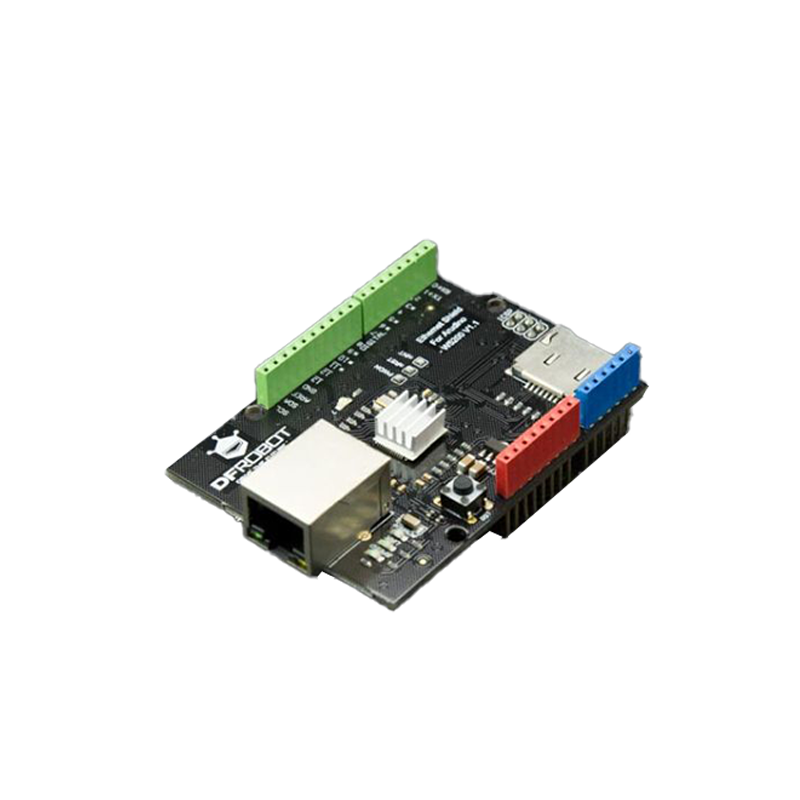

This Ethernet Shield is based on the W5200 Ethernet Chip and provides an easy way of getting your Arduino Online. Just plug this shield onto your Arduino UNO or Mega board, connect it to your network with an RJ45 Ethernet Cable (not included) and follow a few simple instructions, you will be able to explore the world with the Internet. Besides, the shield has a microSD card port for large capacity data storage like Web Page data when applied in complicated applications. The W5200 chip is a Hardwired TCP/IP embedded Ethernet controller that enables easier internet connection for embedded systems using SPI (Serial Peripheral Interface). W5200 suits best for users who need Internet connectivity for the application that uses a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC, and PHY.

The W5200 is composed of a fully hardwired market-proven TCP/IP stack and an integrated Ethernet MAC & PHY. Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, which has been proven in various applications for many years. W5200 uses a 32 Kbytes internal buffer as its data communication memory. By using W5200, users can implement the Ethernet application they need by using a simple socket program instead of handling a complex Ethernet Controller. SPI (Serial Peripheral Interface) is provided for easy integration with the external MCU. Using the only 4 pins of SPI to connect with MCU, it is possible to design a small form factor system with the MCU’s I/O pin limit. In order to reduce the power consumption of the system, W5200 provides WOL (Wake on LAN) and power-down mode. To wake up during WOL, W5200 should receive a magic packet, which is the Raw Ethernet packet.
