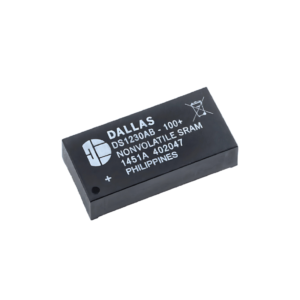

NVRAM 256k Nonvolatile SRAM, DS1230AB-100 - SCIx3418 AED 40.95

Next product

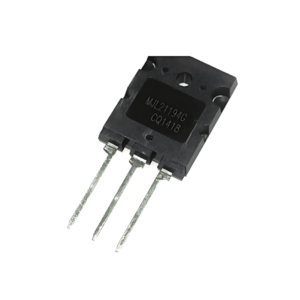

NPN Power Transistor, MJL21194G - SCTx2709 AED 42.32

Click to enlarge

Diode Array, DSEC60-06A – SCTX3063

Name: Diode Array, DSEC60-06A - SCTX3063
SKU: SS155256
Price: 42.32 AED
Availability: InStock

AED 42.32 VAT included

100 in stock

Compare

Product Code : SS155256 Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The DSEC60-06A is a high-performance diode array, designed for fast recovery and low forward voltage drop applications. It features a dual common cathode configuration, making it suitable for various power electronic circuits.

Features

Fast Recovery Time: With a typical reverse recovery time (t_rr) of 35 nanoseconds, it ensures efficient switching performance.
Low Forward Voltage Drop: At a forward current of 30A, the forward voltage drop (V_f) is typically 1.25V, minimizing conduction losses.
High Surge Capability: Capable of withstanding a maximum surge current (I_FSM) of 250A for 10ms, providing robustness against transient conditions.
Low Reverse Leakage Current: Features a maximum reverse recovery current (I_rm) of 6A at 100°C, contributing to reduced power dissipation.
Thermal Performance: Designed with a junction-to-case thermal resistance (R_thJC) of 0.9 K/W and junction-to-heatsink thermal resistance (R_thCH) of 0.25 K/W, facilitating effective heat management.
