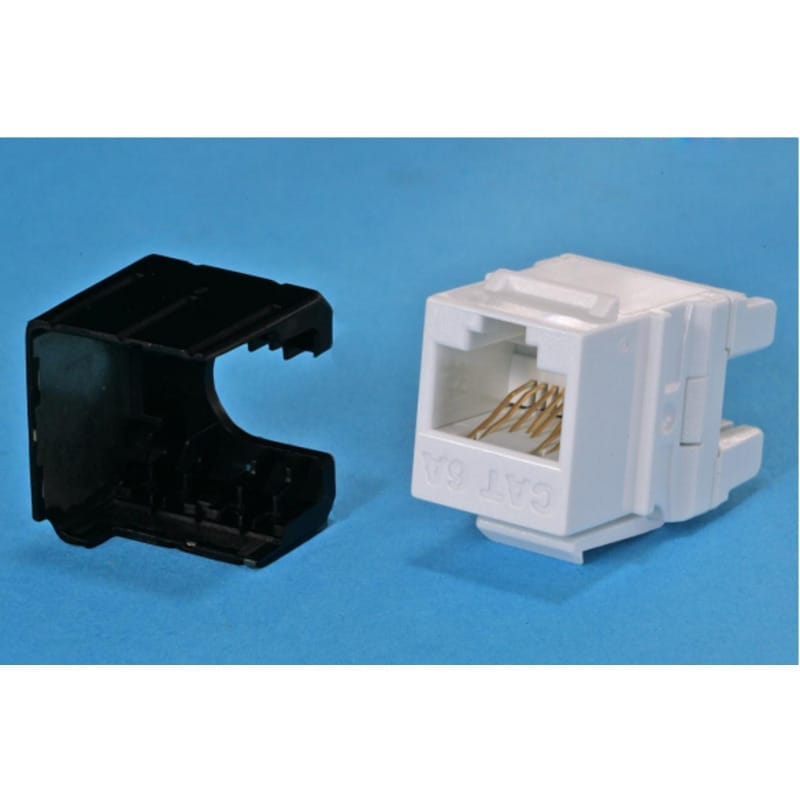

DME Prolink – Keystone CAT6A RJ45 Modular Jack, Unshielded F-Tool Compatible 180 Deg

See all products from dme-prolink

VAT included

Build Enquiry List

Compare

Product Code : SS14581 Brand: DME Prolink Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

DME PROLINK?s CAT6A Unshielded Keystone Jacks RJ45 are designed to be used with all DME PROLINK compatible products. The jack is designed in such a way that it promotes consistent performance over the life of the system. This includes unique pair separation towers allowing for quicker and easier termination. The connector is configured in a 180? configuration such that the punch field is on the rear of the jack, allowing for rear termination. DME PROLINK System components meet or exceed the requirements for channel and component level performance for the TIA/EIA Category and cUL(us) Listed. Compatible with DME PROLINK?s Special Termination Tool called F-Tool.

Features

Meets all requirements specified in ANSI/TIA-568.2-D CAT6A connecting hardware requirements
Snap in style keystone jack; Fire Retardant Grade: UL-94V-0
The termination field is on the rear of the jack for easy access
Can accommodate Conductor diameter in the range 0.5-0.65mm (AWG 22-24)
Connector wiring is universal and has installation color codes for both T568A and T568B wires schemes

Specifications

Brand: DME PROLINK
Electrical Insulation Resistance: 500 M? min. @ 100V DC
Dielectric Withstanding Voltage 1000V DC or AC Peak Contact to Contact @ 60Hz for 1 minute
