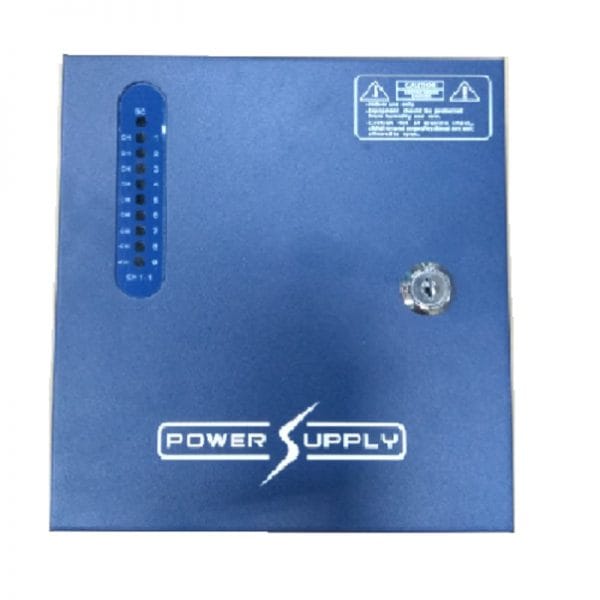

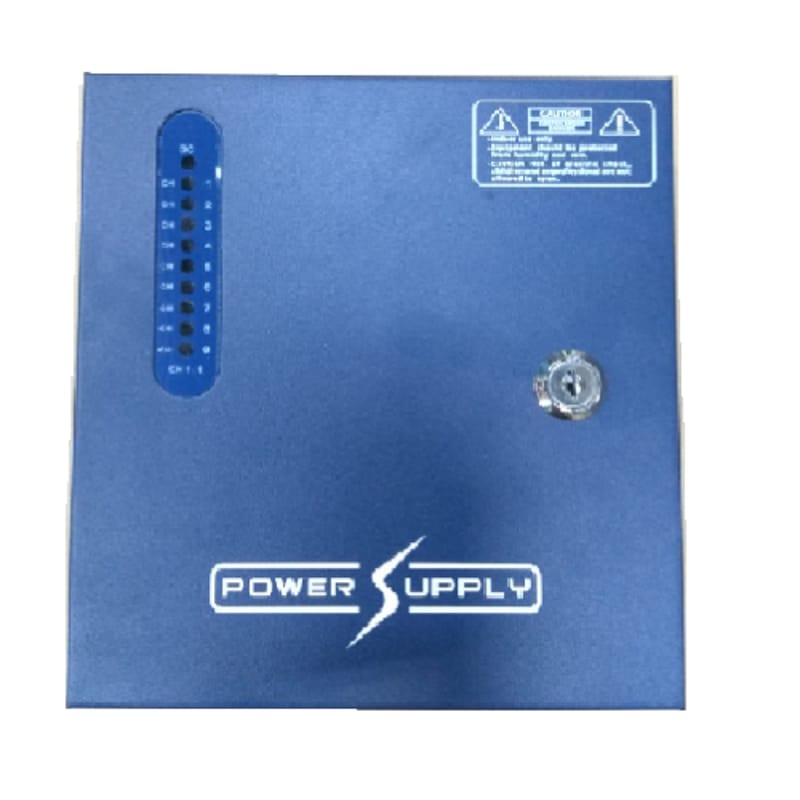

Switching Power Supply ( 12Vdc 9A ) with 9 Output Terminals
See all products from elockAED 386.40 VAT included
EL-PS1209-9A Switching Power Supply offers consistent & reliable regulated full 9 Amps 12Vdc with 9 outputs.Each output has individual PTC fuse with 2A current rating and LED indicator, makes it most suitable for CCTV used.
Product Code : SS10351
Brand: Elock
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
EL-PS1209-9A Switching Power Supply offers consistent & reliable regulated full 9 Amps 12Vdc with 9 outputs. Each output has individual PTC fuse with 2A current rating and LED indicator, makes it most suitable for CCTV used.
Features
- Overload Protection
- Resettable PTC Fuse protection in each output
- Output short circuit protection
- Output voltage adjustment
- Casing Surface finishing - Oven baked Epoxy Powder coating
Specifications
- Dimension : 210 mm W x 245mm H x 88mm D
- Input frequency: 50Hz / 60 Hz
- Output rated voltage : 12Vdc +/- 5%
- Output voltage adjustment : 11 ~ 13.5 V
- Rated Total Current : 9 A
- No. of outputs: 9 outputs
- Output rated current : 2 A current for each output with PTC resettable Fuse protection.
- Full loaded Average current per output : 1.1 A
- Operating temperature: 0~65 deg C
- Safety Approval : CE
