600 lbs EM Lock with LED (Monitored) with Door Contact
See all products from elockAED 191.63 VAT included

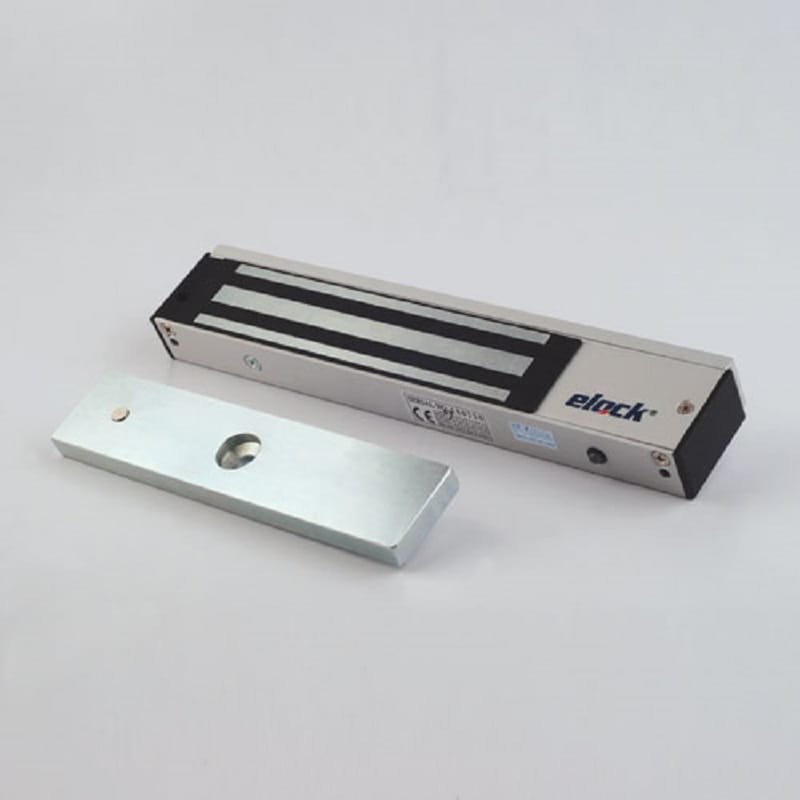

Elock-600LD electromagnetic locks, built-in with Door Status Sensor, offer cost effective solution with easy installation & suitable for variety of application.
Product Code : SS10206
Brand: Elock
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Elock-600LD electromagnetic locks, built-in with Door Status Sensor, offer cost effective solution with easy installation & suitable for variety of application. It has no moving part thus keeping maintenance to a minimum. All types of brackets are available to ease installation for both in-swing & out-swing doors.
Features
- Adjustable "L" bracket for outward door when the header is narrow
- Adjustable "ZL" bracket for inward doorapplication
- Specially designed for glass door solution
- With Filler Plate attached on top of EM Lock.
- Mounting with "Adjustable L Bracket" when Door frame is narrow.
- Mounting with " ZL Bracket " for In-swing door application
Specifications
- Holding force : 600lbs
- Current drawn : 500mA / 250mA
- Protection : MOV surge protection, Fail-Safe type
- Door Status Sensor indicates the dooris in an open or closed status.
- Door status output: SPDT rated: 0.2A/12VDC
- Monitored version, Built-in Bond sensor Indicate the locked & unlocked status with visibleLED indicator
- Bond sensor output : SPDT rated: 0.5A/125VAC; 1A/24VDC
- Push-off button on armature for instant release
- Dimension : Magnet : 250(L) X 41(W) X 26(D) mm Armature Plate :170(L) X 38(W) X 11(D) mm
