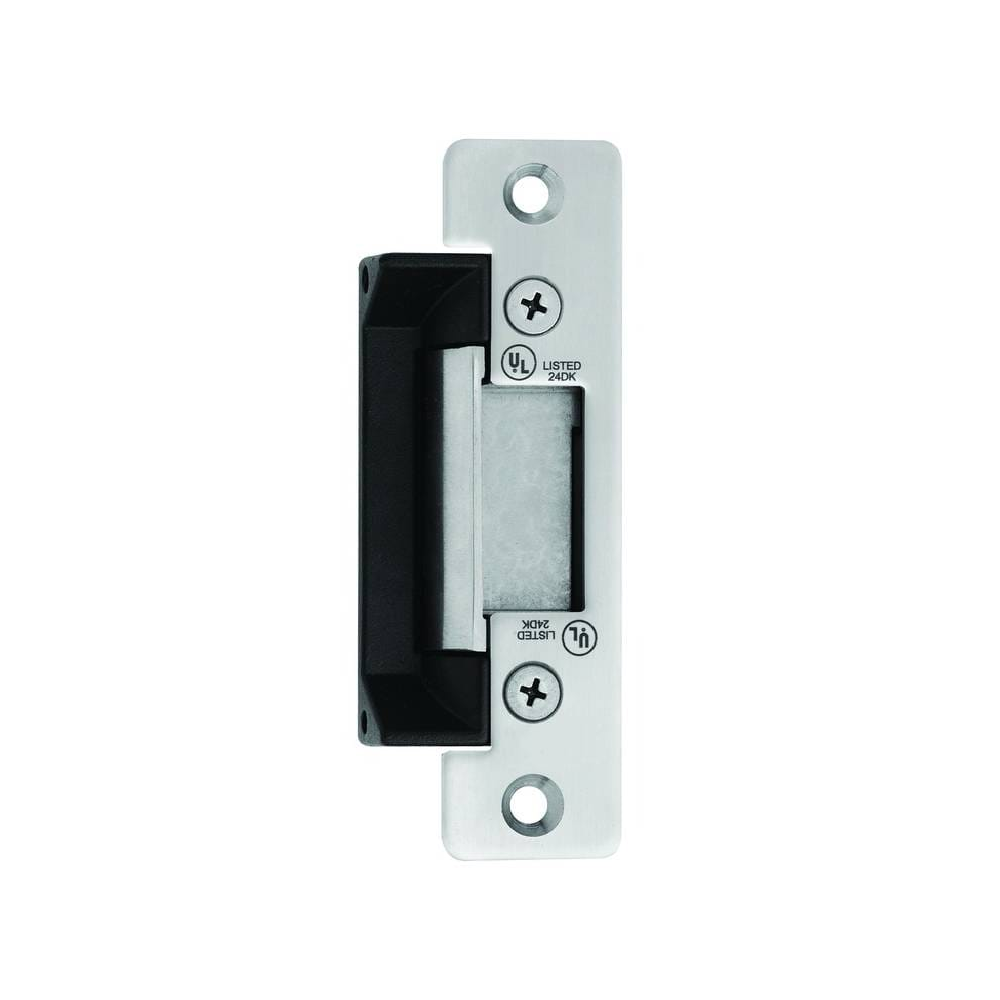

Elock – Trimec Es111 Electric Strike (12/24V Dc, Power-To-Lock, Weather Resistant) – El-Tmes111
See all products from elockAED 907.58 VAT included
ip56 weather-resistant electric strike with multi-voltage 12/24 vdc and field-selectable fail locked/unlocked operation.
Product Code : SS156172
Brand: Elock
Approved by : [woo_pro_badges_extended]Brand: ELOCK
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
trimec es111 (ref 110111-060m) is a robust electric strike supplied with short and long stainless-steel faceplates for timber or aluminium installations. it supports 12/24 vdc, power-to-lock wiring, and provides a 680 kg holding force. suitable for access control systems and fire-rated applications (per product listing).
Features
- multi-voltage 12 vdc and 24 vdc
- supplied with short and long faceplates for flexible mounting
- field changeable fail locked / fail unlocked operation
- ip56 weather resistant construction for external use
- ip56 weather resistant construction for external use
Specifications
- power supply: 12 vdc / 24 vdc
- current draw: 0.25 a (per listing)
- holding force: 680 kg
- protection rating: ip56
- short faceplate: 123h x 32w mm
- long faceplate: 202h x 36w mm
- body size: 43w x 35d mm
- installation: mortice
- certification: ul 1034; ce approved (per listing)
- operation: fail locked or fail unlocked (field changeable)
