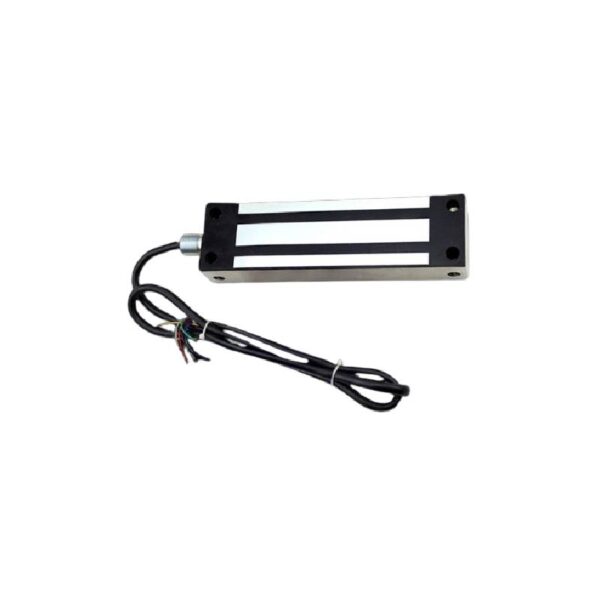

Quant – Weatherproof Electro Magnetic Locks 280kg – Q-WPY280

Name: Quant - Weatherproof Electro Magnetic Locks 280kg - Q-WPY280
SKU: SS154475
Price: 294.63 AED
Availability: InStock

See all products from quant

AED 294.63 VAT included

Compare

Product Code : SS154475 Brand: Quant Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The Q-WPY280-2Bolts is a high-performance electromagnetic lock designed with dual bolts for enhanced security and stability. This feature ensures additional strength and locking precision, making it ideal for high-security doors. With a robust holding force of 280 kg (600 lbs), the lock provides reliable operation for both out-swing and in-swing doors. It features full stainless steel construction, offering superior durability and protection against outdoor elements. The lock operates on a flexible input voltage of 12V or 24V DC, and is equipped with an N.C. output lock sensor for enhanced security feedback. Rated IP67, it can withstand harsh environmental conditions, making it perfect for outdoor use

Features

Dual Bolts for Added Security: The 2 bolts design provides enhanced stability and locking strength, ensuring maximum security in high-risk environments.
High Holding Force: With a magnetic holding capacity of 280 kg (600 lbs), the Q-WPY280-2Bolts ensures secure locking for high-security doors.
Durable Construction: Built with full stainless steel material, it is designed for long lasting durability, especially for outdoor applications.

Specifications

Brand: Quant
Model: Q-WPY280
Material Finishes for Shell: Zinc, Finishes for Magnetic: Zinc, Finishes for Armature: Zinc
Holding Force: 280kg (600lbs)
Voltage: DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Output: NO/NC/COM
Security Type: Fail Safe
Surface Temperature: =20°C
Operating Temperature: -10°C ~ 55°C (14°F-131°F)
Suitable Humidity: 0~90%(non-condensing)
Weight: 2.5kg
