EM-300 EM Lock without LED-Mini Mag
See all products from elockAED 100.80 VAT included

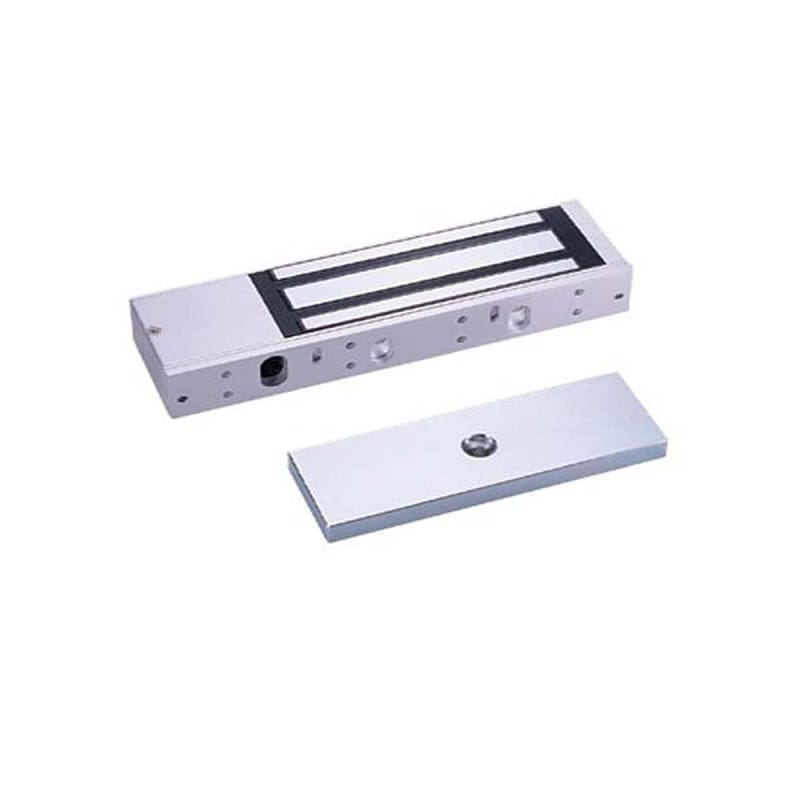

EM-300 series are designed for surface mount on out-swing doors.The maglocks can be configured to mount on in-swing and glass doors with optional LZ- and U-shaped brackets. Other optional operation features include magnetic bond sensor.
Product Code : SS10196
Brand: Elock
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
EM-300 series are designed for surface mount on out-swing doors.The maglocks can be configured to mount on in-swing and glass doors with optional LZ- and U-shaped brackets. Other optional operation features include magnetic bond sensor, relock time delay , door status monitor and buzzer alarm.
Features
- High reliability
- Aluminum anodized casing
- MOV provides spike and surge protection
- Dual voltage 12 or 24 VDC (selectable)
- Anti-Residual magnetism function
Specifications
- Holding force : 600lbs
- Operating temperature : 10~55ºC(14~131ºF)
- Humidity : 0~95% non-condensing.
- Operating voltage: 12/24 VDC
- Dimensions:Magnet:(L) 250, (W) 42, (D) 26 mm, Armature plate:(L) 185, (W) 38, (D) 12 mm, Mounting plate:(L) 250, (W) 25, (D) 5 mm
- Special finishes for magnet and armature plate: Zinc plated
- Epoxy potting compound : E87252 (S), UL94V-0
- Net Weight: 2.0 Kg
