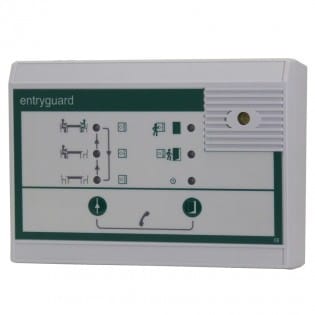

Entryguard EWE100 Entryguard Engaged Wait Enter Controller

Entryguard EWE100 Entryguard Engaged Wait Enter Controller. A unique engaged, wait enter system / privacy controller with additional features for visitor access control, reception call and emergency call and personal attack facilities for interview rooms, consulting rooms and more.

How does the Entryguard Work?

1. The Controller allows the room occupant to select one of three states – Engaged, In Use or Vacant.

2. If controller status Engaged – Pressing door call button results in visual/silent interrupt indication at controller, occupant can decide whether to allow entry. (LED Illuminated Red)

3. If controller status In Use – Pressing door call button results in audible/visual indication at the controller, occupant can then decide whether to allow entry. (LED Illuminated Yellow)

4. If controller status Vacant – Door call button indicates the room is free to enter. (LED Illuminated Green).

There are several other optional facilities on the Engaged Wait Enter system such as, reception call, emergency call and lockout override.Door call button with status LEDs
Three room states – Vacant, In Use and Engaged
Pushbutton to change states and allow entry
Visitor calling and door release indication
Automatic control of electric door strike to reinforce entry rights
Reception call facility if required via a remote indicator
Emergency call facility to a remote indicator
Incorporated Panic Alarm facility
Door lock control
Mains powered 230vac
175 x 125 x 60 tapering to 50mm
Use with S1625P Door call button
