MPA2 Access Control Panel only
AED 6,537.30 VAT included
Out of stock
Product Code : SS13879
Seller: Security Supplies
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in UAE
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description

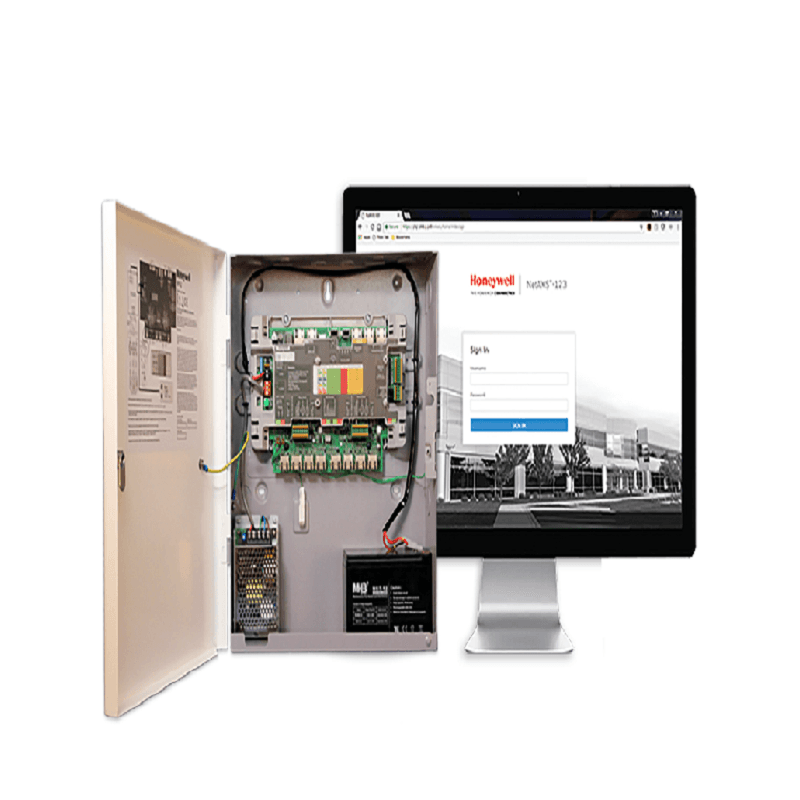

Honeywell MPA1004E-MPS MPA2 – 4 Door Access Control Solution (Europe). Includes: MPA2C1-4 (4 DOOR LICENSED), MPA2ENCM, 2x MPA2RJ, MPA2BAT7
Features
- Built-in Communication Options : Ethernet; RS-485; USB
- I/O Expansion Module Connectivity : Use RS-485 Port to connect a maximum of 6 downstream I/O modules (NX4)(4) (4 Output and 2 Input)
- Number of Outputs : 4 SPDT (jumper-selectable NO or NC contacts) per door rated at 3 A @ 28 VDC;
- Number of Inputs : 8 (+4) Configurable four-state supervised input points
- Door/Reader Capability : 2 Door/4 Readers - 4 Door/8 Readers(3)
- Real Time Clock : Global Geographic Time Zone support; Daylight Saving Time support
- Processor : IMX6-X1
- Temperature Ratings Operating : 0°C to 49°C (32°F to 120°F)
- Dimensions : 14.1 inch (360 mm) x 16.1 inch (410 mm) x 4.3 inch (110 mm)
- Certifications and Approvals : EMC/CE and FCC Compliant; UL 294 Listing, ULC319
Specifications
Questions & Answers
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
Reviews (0)
Reviews
Related products
Close
Interguard IG432 Interguard 2/3/4 door control unit with steel case & 5A PSU
Interguard IG432 Interguard 2/3/4 door control unit with steel case & 5A PSU. This sophisticated door interlock controller allows 2, 3 or 4 doors to be interlocked to restrict or control entry to and from areas that need to be secured against two or more doors being open simultaneously.
Two fundamental operational modes are available:
Mode 1 Keep all doors closed but unlocked, when a door is opened all other doors are locked.
Mode 2 Keep all doors closed and locked, unlock a door upon request.
The system comprehensively caters for use with any kind of door lock and any kind of door even including powered doors, roller shutters, traffic bollards etc..
New features include the ability to configure the system in a 2 door / 3 door combination which effectively creates two separate interlocks sharing a common door, plus a privacy facility which allows two doors within the system to be locked at the press of a button preventing either of the two doors being opened again until the privacy button is pressed again - ideal for controlled change rooms.
Key features:
Close
Interguard IGPX8 Interguard 8 door programmable interlock controller
Interguard IGPX8 Interguard 8 door programmable interlock controller. INTERGUARD IGPX8 is a sophisticated fully programmable door interlock controller. The system allows up to 8 doors to be interlocked in a multitude of combinations. See examples on page 2 of the Product Information Sheet below.
A simple programming system allows for the on-site configuration of site specific requirements. This also allows for the instant alteration of the interlocking to meet customers ever changing needs.
Close
Siganmetric ME X7 Two door standard access controller
Siganmetric ME X7 Two-door standard access controller. Input Format of Reader is Wiegand 26 (All card readers with compatible protocol, such as Motorola, HID, EM, Mifare one, etc). Door opening time extending setting 1-600 seconds(adjustable).
Close
Interguard IG528 Interguard 5-8 door control unit with steel case & 5A PSU
Interguard IG528 Interguard 5-8 door control unit with steel case & 5A PSU. This door interlock controller allows 5, 6, 7 or 8 doors to be interlocked to restrict or control entry to and from areas that need to be secured against two or more doors being open simultaneously.
The only operational mode available on this model is to keep all doors closed and locked and then unlock a door upon request.
Key features:
Close
Samsung Hanwha Wisenet V2000 Distributed Controller
Samsung Hanwha Wisenet V2000 Distributed Controller Up to : 2 reader interfaces (up to 2 doors) Up to 250,000 cardholders . Reports all activity to the host, Reports supervised inputs/alarms with 255 priorities.
Close
Samsung Hanwha Wisenet V1000 Centralized Controller
Samsung Hanwha Wisenet V1000 Centralized Controller Up to 20 reader interfaces(up to 40doors). Up to 250,000 cardholders .Fully functional offline operation when not actively communicating with the host : access decision, event logging.Reports supervised inputs/alarms with 255 priorities.
Close
MPA2 Intelligent Access Control Panel, kit
Honeywell MPA1002E-MPS Door Access Control Panel
Close
Samsung Hanwha Wisenet EH400K PoE Controller
Samsung Hanwha Wisenet EH400K PoE Controller For one door with one reader and 125,000 cardholders.PoE (802.af) support.Reports all activity to the host.Fully functional offline operation when not actively communicating with the host : Access decision, event logging.Interface with one wiegand or clock-and-data reader.
