Hoyles DCS/AR065M Flush contact for Steel Doors Grade 2 with 5m cable
See all products from hoylesAED 262.50 VAT included

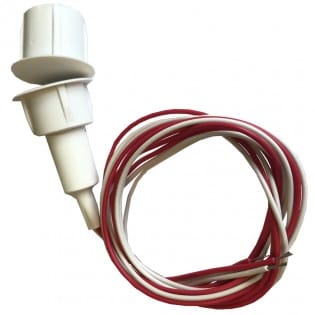

Hoyles DCS/AR065M Flush contact for Steel Doors Grade 2 with 5m cable. This contact is designed in such a way that magnetic interference from surrounding metals is reduced, allowing it to be used in steel framed doors. The barrel of this contact holds four sloped crush ribs allowing it to easily slide into a 20mm diameter recess, locking at the contact plate.
Product Code : SS11212
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles DCS/AR065M Flush contact for Steel Doors Grade 2 with 5m cable. This contact is designed in such a way that magnetic interference from surrounding metals is reduced, allowing it to be used in steel framed doors. The barrel of this contact holds four sloped crush ribs allowing it to easily slide into a 20mm diameter recess, locking at the contact plate.Operating Gap:15- 20mm Approx
Contact: Single Reed Normally Closed
Voltage Range: 1 to 100vdc 125vac Max
Switching Current: 500mA Max DC – 500mA Max AC
Temperature Range: -40degC to +50degC
Colour: White
Environmental Class: 3
Tamper: Tamper Loop
Dimensions: Refer to Technical Drawing
Fly Lead: 5m 4 core
