Hoyles DCS/INT Standard door contact surface mount – white
See all products from hoylesAED 22.05 VAT included

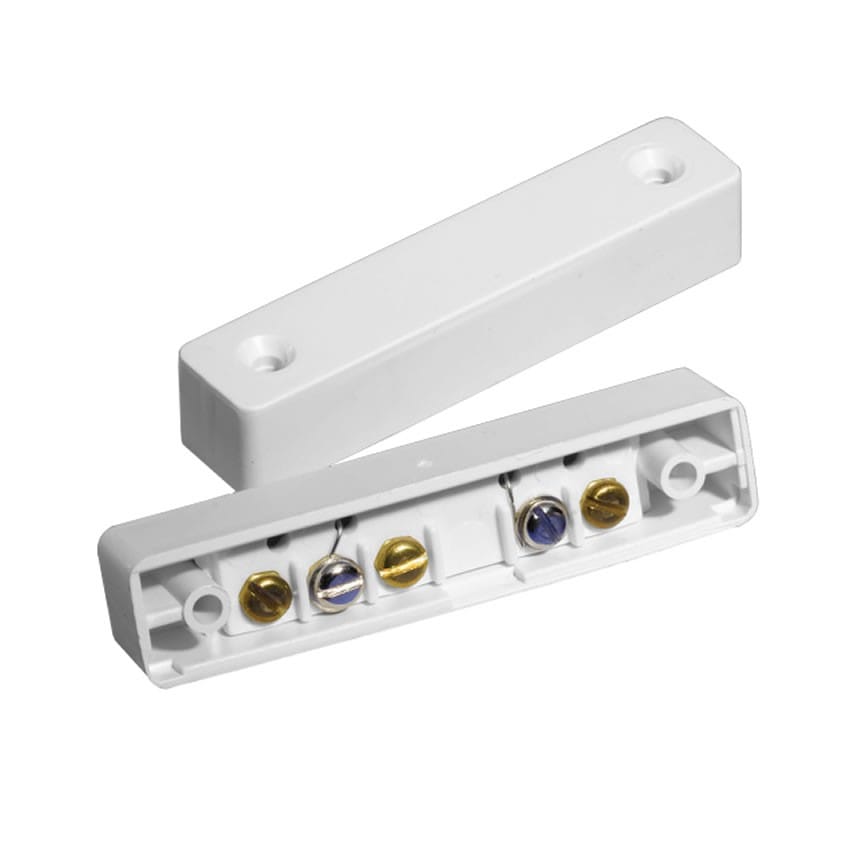

Hoyles DCS/INT Standard door contact surface mount – white. A basic five screw surface contact . Two nickel screws to govern the reed switch and three spare brass screws for any custom requirements.
Product Code : SS11208
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles DCS/INT Standard door contact surface mount – white. A basic five screw surface contact . Two nickel screws to govern the reed switch and three spare brass screws for any custom requirements.Operating Gap: 20mm Approx
Contact: Single Reed
Voltage Range: 100vdc 125vac Max
Switching Current: 500mA Max DC – 500mA Max AC
Temperature Range: -40degC to +50degC
Colour: White
Environmental Class: 2
Tamper: n/a
Dimensions: 67mm x 14mm x 13mm
Supplied with mounting screws
