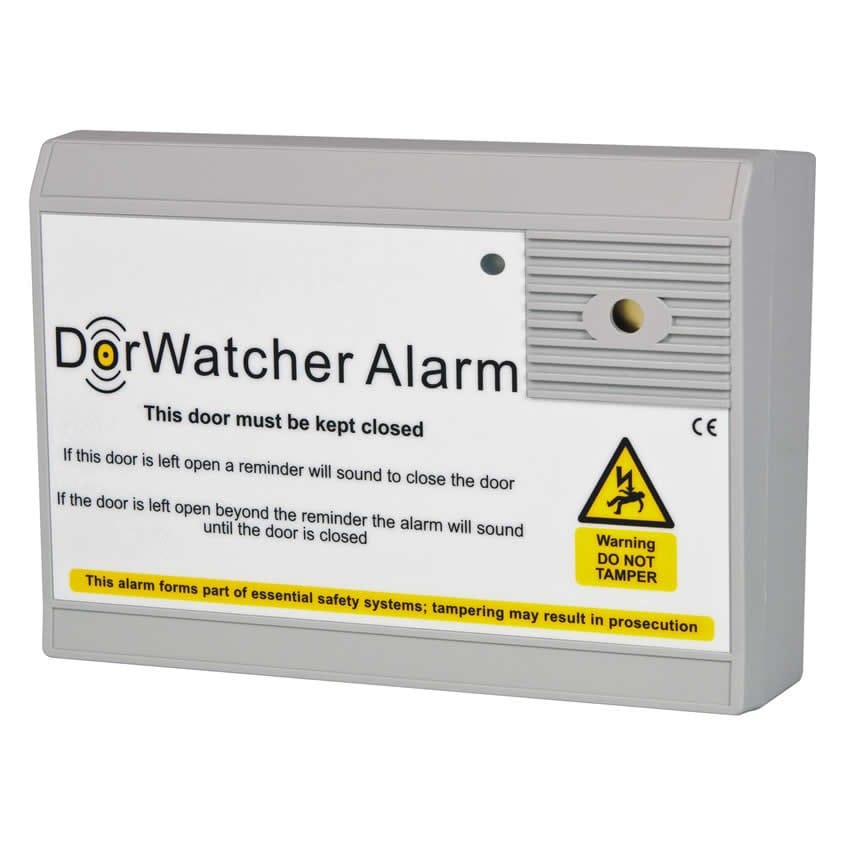

Hoyles DorWatcher door held open alarm
See all products from hoylesAED 843.15 VAT included
Hoyles DorWatcher door held open alarm. Reduce false alarm call outs to the Fire Service – fit DorWatcher today!
Sometimes referred to as a door screecher, the DorWatcher is an alarm unit used to prevent doors being left open for extended periods of time.
Typically used to alarm kitchen doors in student accommodation, the alarm is activated if the kitchen door remains open for more than 1 minute prompting people in the vicinity to close the door thereby preventing smoke from cooking drifting into corridors and causing fire alarm activations.
Once activated the alarm is automatically reset as soon as the door is closed.
Product Code : SS11084
Brand: Hoyles
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Hoyles DorWatcher door held open alarm. Reduce false alarm call outs to the Fire Service – fit DorWatcher today!
Sometimes referred to as a door screecher, the DorWatcher is an alarm unit used to prevent doors being left open for extended periods of time.
Typically used to alarm kitchen doors in student accommodation, the alarm is activated if the kitchen door remains open for more than 1 minute prompting people in the vicinity to close the door thereby preventing smoke from cooking drifting into corridors and causing fire alarm activations.
Once activated the alarm is automatically reset as soon as the door is closed.Robust ABS plastic enclosure
175 x 125 x 60 tapering to 50mm
High Power 105db Sounder
Box tamper switch
Clear instructions displayed on the unitAdjustable time delays from 30 secs to 7 mins
Simple installation
Models available are:
DW304 – powered by 6 x AA alkaline batteries (supplied) – ideal for retrofit.
DW305 – powered by a 12vdc power supply with alarm relay output (Power supply available separatley)
DW306 – powered by mains with alarm relay output
Select your required option from the drop down above
Optional Cage and Anti-tamper screws
CG100 – Cage manufactured from 9 gauge galvanised steel rod, designed to protect our Exitguard, DorWatcher, Zoneguard, Aidalarm and Stop ‘n’ Search models from vandalism and misuse. The cage has openings for normal operation.
FIX/16 – 4off / pack used to secure CG100
FIX/16ATS – 2 hole anti tamper screwdriver bit to suit FIX/16 screws
FIX/17 – Pack of 5 anti tamper screws for DorWatcher lid and door contact
FIX/17/ATS – 2 hole anti tamper screwdriver bit to suit FIX/17 screws
DorWatcher Series Model Comparison
Code
DW304
DW305
DW306
Battery Monitor
Yes
No
Yes
Supply Voltage
7v -14vdc batteries
12vdc
240vac
Supply Current
N/A
45mA quiescent 155mA max
45mA quiescent 155mA max
Batteries(supplied)
6 x AA alkaline
No
No
105db Sounder
Yes
Yes
Yes
Alarm Relay Contacts
No
SPCO 1A 30vdc
SPCO 1A 30vdc
Auxiliary Power O/P
No
No
200mA @12vdc
