Hoyles S1718KSW Request to Release key switch with door status LEDs S/S

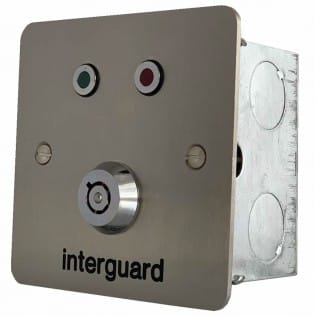

Hoyles S1718KSW Request to Release keyswitch with door status LEDs S/S. A high security momentary action keyswitch together with one red and one green LED on a single gang stainless steel plate. Designed for use with our range of Interguard door interlock controllers but usable in many other applications. The keyswitch has single pole contacts which are open going closed when the key is turned. The LEDs are terminated for 12vdc operation
High security keyswitch 50,000+ differs.Specification

Led Current – 20mA per LED@ 12vdc
Momentary switched +ve
High security keyswitch 50,000+ differs
Sounder Current – N/A
Visual Indication – 1 x red LED 1 x green LED
Integral Sounder Level – N/A
Tamper – Yes
Material – 304 Grade Stainless Steel
Dimensions – 86mm x 86mm x 2mm – Facia
47mm galvanised back box supplied
Surface mounted using part no. S0610-50 listed below
Weight – 0.30kg
IP Rating – IP65 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
