AED 238.35 VAT included

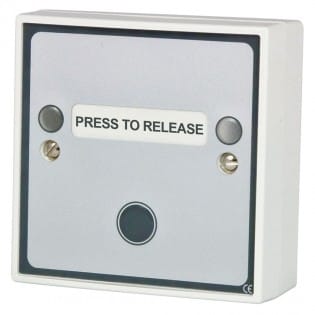

Hoyles S1718PRG Press to Release button with Red and Green door status LEDs. Press to release button for use with access control systems. This button has two high brightness LEDs, one red and one green. Both are current limited for 12vdc operation.
The pushbutton is rated at 30 vdc 50ma and is therefore not generally suitable for directly releasing door strike or maglocks
Above AED1000 in UAE
For 365 days
Only Reputed Brands
Multiple payment options
Hoyles S1718PRG Press to Release button with Red and Green door status LEDs. Press to release button for use with access control systems. This button has two high brightness LEDs, one red and one green. Both are current limited for 12vdc operation.
The pushbutton is rated at 30 vdc 50ma and is therefore not generally suitable for directly releasing door strike or maglocksSpecification
Led Current – 17.5mA@12vdc
Sounder Current – N/A
Switch Contacts – 50mA@12vdc
Visual Indication – 2 x LEDs one red one green
Integral Sounder Level – N/A
Tamper – N/A
Material – White ABS
Weight – 0.12kg
87mm x 87mm x 36mm (Surface mount)
IP Rating – IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals – CE and RoHs compliant
Back box supplied for surface mount
Can be Semi Flushed onto standard flush back box (Not supplied)
Mark resistant decal
Tactile button
Two high brightness LEDs
