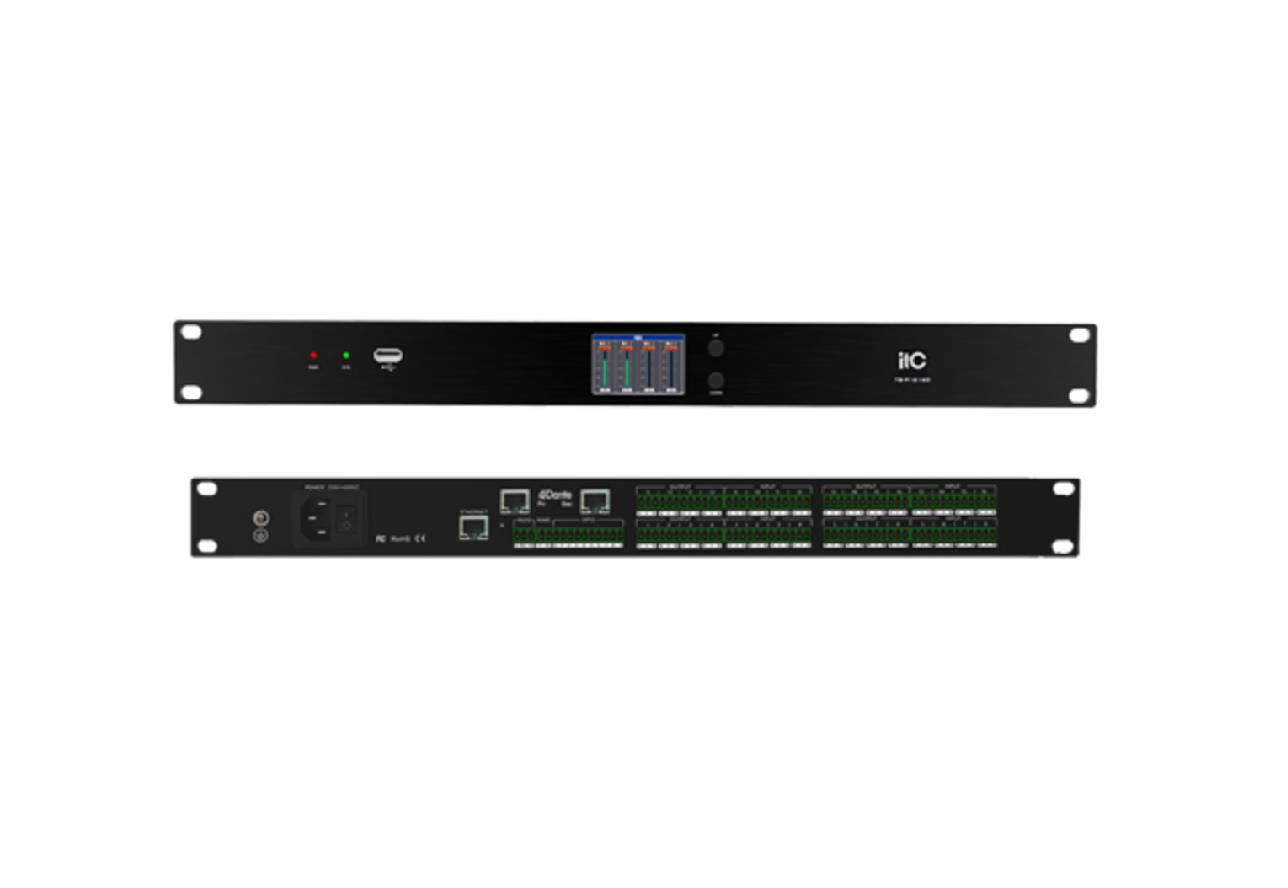

ITC – 16 Input and 16 Output Digital Audio Matrix Processor – TS-DP1616

Name: ITC - 16 Input and 16 Output Digital Audio Matrix Processor - TS-DP1616
SKU: SS154200
Price: 7372.05 AED
Availability: InStock

See all products from itc

AED 7,372.05 VAT included

Compare

Product Code : SS154200 Brand: ITC Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

It is a high-performance 16 in and 16 out digital audio processor highly integrating multiple audio processing technologies. It adopts DSP audio processing technology, built-in feedback suppression, echo cancellation, noise elimination, Dante network transmission and other functions, to provide users with excellent sound quality. It is mainly used in medium and large places to meet the application requirements of public sound reinforcement systems such as remote video conferences, stadiums, conference centers, auditoriums, banquet halls, exhibition halls, multimedia conferences, and command centers.

Features

Each input channel: 16 balanced microphone/line inputs, bare wiring interface terminal, balanced connection
Each output channel: 16 balanced line outputs, bare wiring interface terminal, balanced connection
Support DANTE network transmission protocol, low latency DANTE network audio transmission, 16 sending channels, 16 receiving channels, can achieve network audio extension
Provide 24bit/48KHz high quality sound
Full-featured matrix mixing, flexible and simple signal routing operations, routing path and level size can be completed with one button
2.19-inch LCD display on the panel, supporting the display of device network information, real-time level, channel mute status, matrix mixing status
Panel with USB interface
The bidirectional RS-232 interface can be used to control external devices
The RS-485 interface can achieve automatic camera tracking

Specifications

Brand: ITC
Model: TS-DP1616
Part: 5194788000000177292
Input channel: Preamplifier, signal generator, extender, compressor, 5-band parametric equalizer, AM auto-mixing function, AFC adaptive feedback cancellation, AEC echo cancellation, ANC noise cancellation
Output channel: 31-band parametric equalizer, delayer, frequency divider, High-lower pass filter, limiter
Dante interface: 2
Sampling rate: 48K
Phantom power: DC 48V
Frequency response: 20Hz-20KHz
THD + N: ?0.003%,4dBu
D/A dynamic range (A-weighted): 114dB
A/D dynamic range (A-weighted): 120dB
Input impedance (balanced): 20K?
Maximum output impedance (balanced): 100?
Channel separation: 1kHz, 104dB
