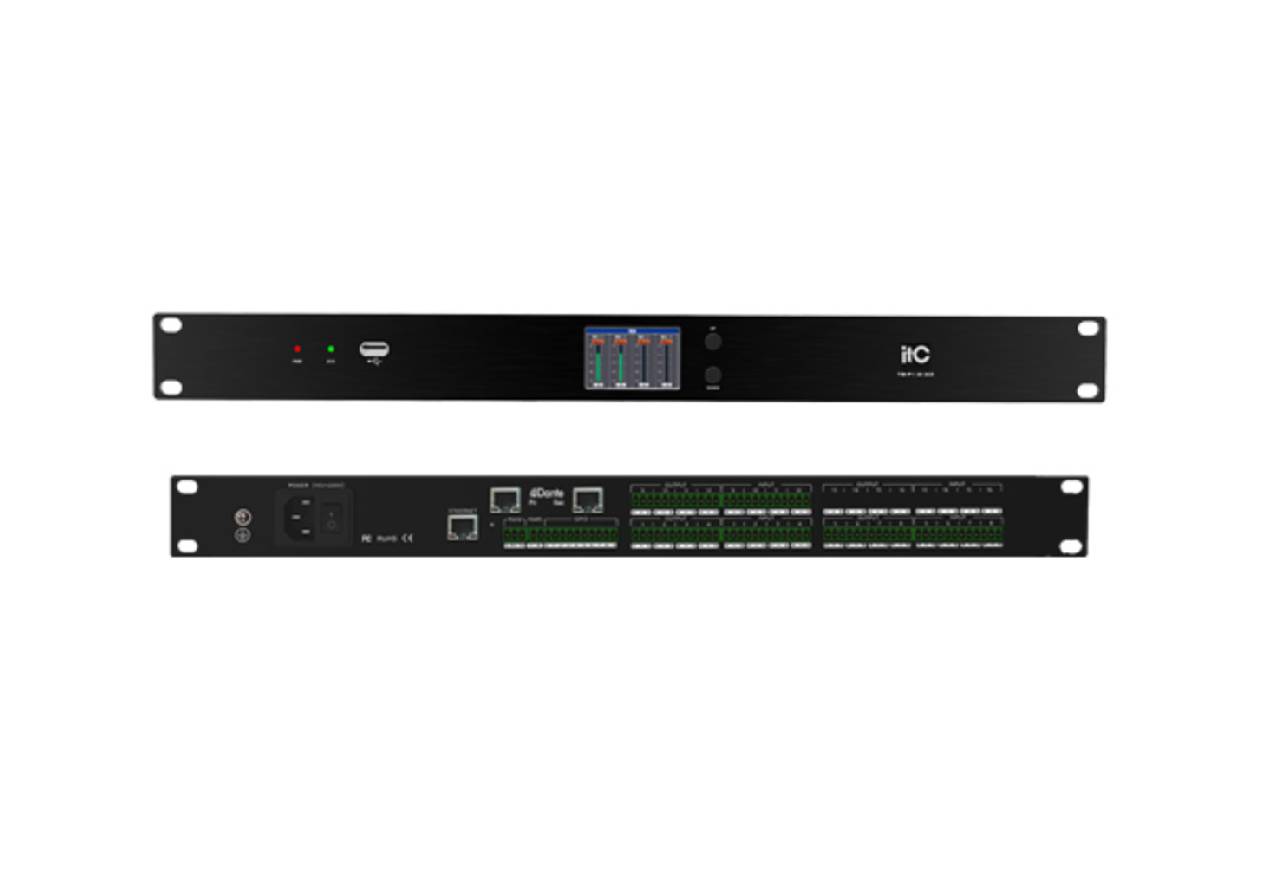

ITC – Professional 8 Channel Digital Audio Processor, 12 Inputs – TS-DP1212

Name: ITC - Professional 8 Channel Digital Audio Processor, 12 Inputs - TS-DP1212
SKU: SS154199
Price: 6506.85 AED
Availability: InStock

See all products from itc

AED 6,506.85 VAT included

Compare

Product Code : SS154199 Brand: ITC Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

It is a high-performance 12 in and 12 out digital audio processor highly integrating multiple audio processing technologies. It adopts DSP audio processing technology, built-in feedback suppression, echo cancellation, noise elimination, Dante network transmission and other functions, to provide users with excellent sound quality. It is mainly used in medium and large venues such as stadiums, auditoriums, banquet halls, exhibition halls, and multimedia conferences.

Features

Each input channel: 12 balanced microphone/line inputs, bare wiring interface terminal, balanced connection
Each output channel: 12 balanced line outputs, bare wiring interface terminal, balanced connection
Support DANTE network transmission protocol, low latency DANTE network audio transmission, 16 sending channels, 16 receiving channels, can achieve network audio extension
Provide 24bit/48KHz high quality sound
Full-featured matrix mixing, flexible and simple signal routing operations, routing path and level size can be completed with one button
2.19-inch LCD display on the panel, supporting the display of device network information, real-time level, channel mute status, matrix mixing status
Panel with USB interface

Specifications

Brand: ITC
Model: TS-DP1212
Part: 5194788000000177283
Input channel: Preamplifier, signal generator, extender, compressor, 5-band parametric equalizer, AM auto-mixing function, AFC adaptive feedback cancellation, AEC echo cancellation, ANC noise cancellation
Output channel: 31-band parametric equalizer, delayer, frequency divider, High-lower pass filter, limiter
Dante interface: 2
Sampling rate: 48K
Phantom power: DC 48V
Frequency response: 20Hz-20KHz
THD + N: ?0.003%,4dBu
D/A dynamic range (A-weighted): 114dB
A/D dynamic range (A-weighted): 120dB
Input impedance (balanced): 20K?
Maximum output impedance (balanced): 100?
Channel separation: 1kHz, 104dB
