Description

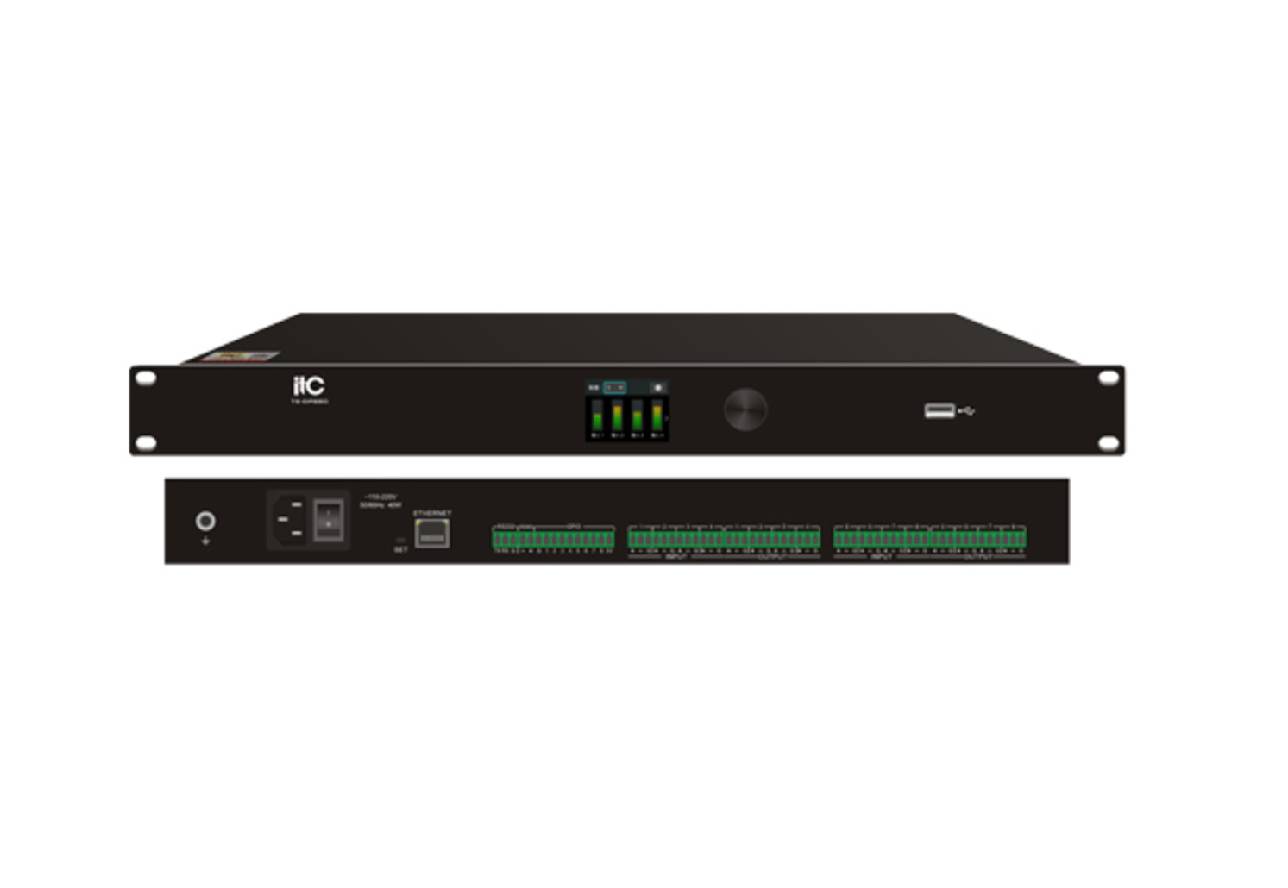

It is a high-performance audio processor with 8 analog balanced inputs and 8 analog balanced outputs. Integrated dynamic range control (DRC), automatic gain control(AGC), auto feedback control (AFC), adaptive noise reduction (ANS), adaptive echo cancellation (AEC), audio filters (GEQ, PEQ, crossover) and other functions.It is mainly used in professional sound reinforcement scenarios to meet the application requirements of sound reinforcement systems such as conference rooms, courtrooms, auditoriums, multi-function halls, performances, classrooms.

Features

High-performance 64-bit DSP processor (800M main frequency), 32-bit/48KHz AD/DA, professional DSP processing, providing excellent high-quality sound
Support 8 in 8 out audio matrix function, the input sensitivity can be adjusted according to different audio sources. Each input supports 48V phantom power supply, which can be individually configured to be turned on and off, flexible and convenient
Support the ducker function, which is used for background music to automatically duck the microphone to speak, and provide a variety of parameter settings, which is convenient for flexible use on site
Support the automatic gain function of the microphone, which is used to control the dynamic range of the pickup signal of the microphone to achieve consistent sound quality from far and near
Support crossover function, provide Bessel, Linkwich-Rayleigh, Butterworth three filter types for selection, and support 6/12/18/24/32/40/48db/oct slope settings, the filter is adjustable in the whole frequency band
2-inch IPS real color display on the panel, supporting the display of device network information, real-time level, channel mute status, matrix mixing status and other status
Panel with USB interface, supports multimedia storage, and can store, record or play

Specifications

Brand: ITC
Model: TS-DP880
Part: 5194788000000177274
Input channel: 8 balanced MIC/LINE inputs, using bare wire interface terminals, balanced connection
Output channel: 8 balanced line outputs, using bare wire interface terminals, balanced connection
Input channel: Preamplifier, signal generator, 12-band parametric equalizer, input module, input equalizer, expander, compressor, automatic gain, ducker, feedback suppression, echo cancellation, noise cancellation
Output channel: 31-segment graphic equalization adjustment, limiter, output equalizer, delay, and output module
Processor: 48kHz sampling frequency, 64-bit DSP processor; 32-bit A/D and D/A conversion
Phantom power: DC 48V
Frequency response: 20Hz?20KHz
THD + N: ?0.002% OUTPUT=24dBu/1kHz
Input impedance (balanced): 20K?
Maximum output impedance (balanced): 100?
