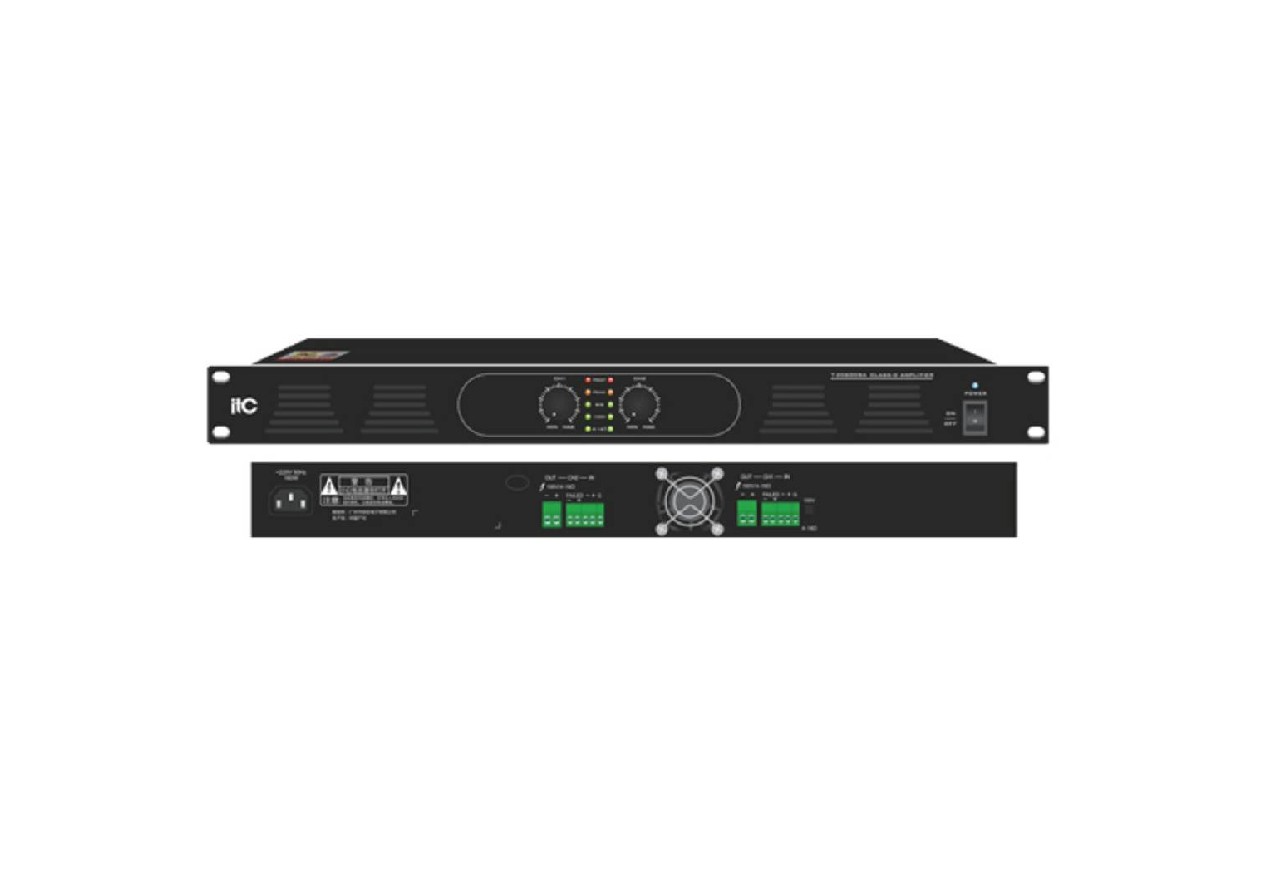

ITC – 2 channel 2 × 240W 100V/4ohm Class-D Power Amplifier with Volume Control in Front Panel without 24VDC – T-2240DSA
See all products from itcAED 1,254.75 VAT included
ITC – 2 channel 2 × 240W 100V/4ohm Class-D Power Amplifier with Volume Control in Front Panel without 24VDC – T-2240DSA
Product Code : SS154156
Brand: ITC
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Provide Zone power amplifier for broadcasting system, suitable for clubs, venues, shopping center and other broadcasting systems with multi-channel high power amplifier requirements.
Features
- High efficiency class D amplifier circuit and high efficiency switching power supply are adopted, making the efficiency of the whole machine up to 85%
- Reasonable heat dissipation layout is adopted in the interior of the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment
- Adopt 1U standard 19-inch industrial chassis design
- 2 channel digital power amplifier to provide two 100V or 4-16? output terminal wiring speaker
- Not with 100V transformer output and can switch resistance between 4 and 16 ? output
- Support fault output function, which can remotely monitor the working status of power amplifier
- The product has short circuit, overload and overheating protection function
- More than 85% high efficiency amplifier with low power loss and heat gain
- With 2-channel Euro-type balanced input and 2-channel Euro-type output
Specifications
- Brand: ITC
- Model: T-2240DSA
- Part: 5194788000000176887
- Rated Power: 2×240W
- Rated Output: 100V/4-16?
- Input sensitivity(Impedance): ±385mV/20K?, Balanced input
- Overload source electromotive force: >11dB
- Frequency Response: 80Hz~16KHz (+1, -3dB)
- SNR: ?85dB
- THD: ?0.1% at 1KHz, 1/3 Rated Power
- Control: Remote power control and fault indication
- Indicator Light: Signal, peak, protection, power supply
- Protection: High temperature, overload, short circuit
- Cooling: Forced fan cooling
- Power Supply: ~220V/50Hz
- Dimension: 484×300×44mm
- Weight: 4.5Kg
