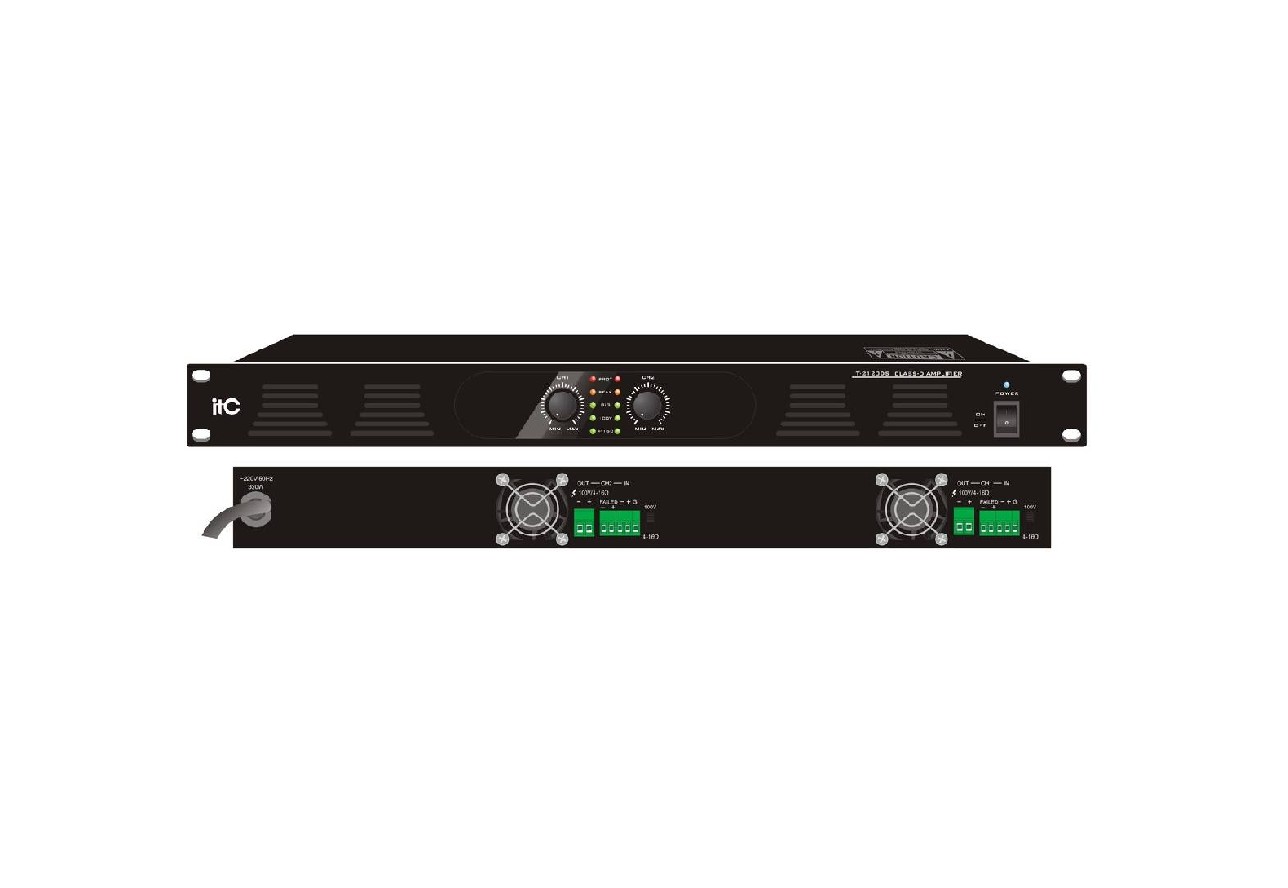

ITC – 2 channel × 500W, 100V/4ohm Class-D Power Amplifier with Volume Control in Front Panel without 24VDC – T-2500DS
See all products from itcAED 1,704.15 VAT included
ITC – 2 channel × 500W, 100V/4ohm Class-D Power Amplifier with Volume Control in front Panel without 24VDC – T-2500DS
Product Code : SS154157
Brand: ITC
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Provide regional power amplification for broadcast systems, suitable for broadcast systems such as clubs, venues, shopping centers, etc. with multi-channel high-power amplifier requirements.
Features
- Adopting high-efficiency Class-D amplifying circuit with built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%
- Reasonable heat dissipation layout is adopted inside the product, which enables the product to maintain a working temperature lower than 55 degrees even in extremely harsh working environment, greatly extending the service life of the equipment
- 1U standard 19-inch industrial chassis design
- Providing 2 channel of 100 v or 4-16 ? output terminal wiring speaker
- Without transformer output 100V and can switch constant resistance 4-16? output
- The fault output function can remotely monitor the working state of amplifier
- The product has short circuit, overload and overheat protection
- Support 2-channel independent power supply function
- 85% high-efficiency amplifier with low power loss and heat output
- 2-channel European terminal balanced input and 2-channel European terminal output
Specifications
- Brand: ITC
- Model: T-2500DS
- Part: 5194788000000176896
- Rated Power Output: 2×500W
- Rated Output: 100V/4-16?
- Input Sensitivity: ±385mV/20K?,Balance input
- Overload Source Electromotive Force: >11dB
- Frequency Response: 80Hz~16KHz (+1, -3dB)
- Signal-to-noise Ratio: ?85dB
- THD: ?0.1% at 1KHz, 1/3 Rated power
- Control: Remote power control and fault indication
- Indicator Light: Signal, peak, protection, power
- Protection: Overheat, overload, short circuit
- Cooling: Fan forced cooling
- Power Supply: ~220V/50Hz
- Dimension: 484×315×44mm
- Weight: 4.7Kg
