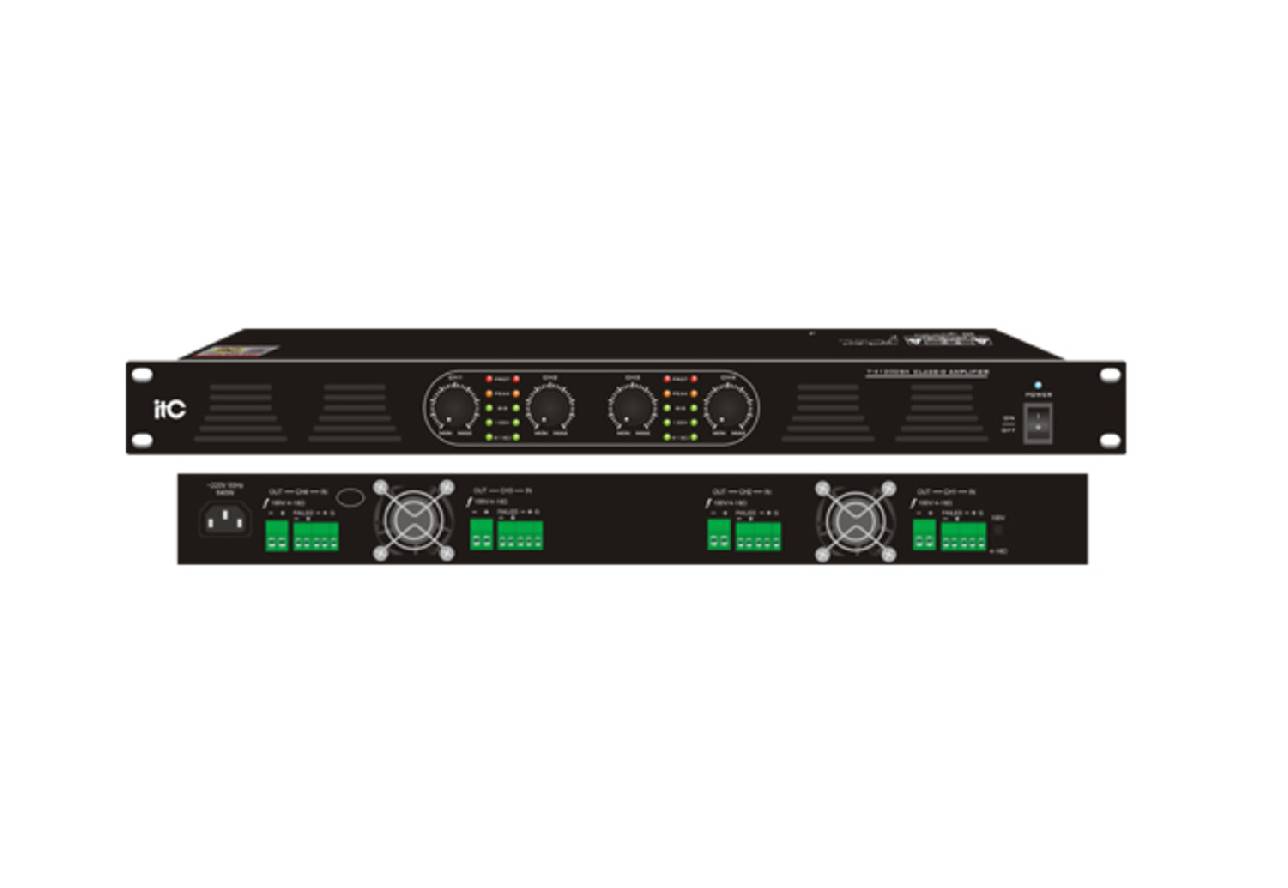

ITC – 4 channel x 240w 100v/4ohm Class D Power Amplifier with Volume Control in Front Panel, without 24VDC – T-4240DSA
See all products from itcAED 2,257.50 VAT included
ITC – 4 channel x 240w 100v/4ohm Class D Power Amplifier with Volume Control in Front Panel, without 24VDC – T-4240DSA
Product Code : SS154158
Brand: ITC
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
It can provide regional power amplification for broadcast systems. It is suitable for club, venue, shopping center and other places that need broadcast systems with high-power power amplifier.
Features
- It adopts high-efficiency class D amplifying circuit and built-in high-efficiency switching power supply, which makes the whole machine efficiency up to 85%
- The internal heat dissipation layout of the product makes the product maintain the working temperature below 55 degrees in the extremely harsh working environment, which greatly prolongs the service life of the equipment
- 1U standard rack design
- 4 channel digital power amplifier provides four 100V or 4-16? output terminal
- Without transformer output 100V and can switch to 4-16? output
- Support fault output function, which can remotely monitor the working status of the power amplifier equipment
- The product has short circuit, overload and overheat protection
- 85% high efficiency amplifier with low power loss and low heat generation
- With 4-channel European terminal balanced input, 4-channel European terminal output
Specifications
- Brand: ITC
- Model: T-4240DSA
- Part: 5194788000000176905
- Rated Power: 4×240W
- Rated Output: 100V/4-16?
- Input Sensitivity (impedance): ±385mV/20K?, Balanced input
- Overload Source Electromotive Force: >11dB
- Frequency Response: 80Hz~16KHz (+1, -3dB)
- SNR: ?85dB
- THD: ?0.1% at 1KHz, 1/3 rated power
- Control: Remote power control and fault indication
- Indicator Light: Signal, peak, protection, power supply
- Protection: High temperature, overload, short circuit
- Cooling: Forced fan cooling
- Power Supply: ~240V 50/60Hz
- Dimension: 484×315×44mm
- Weight: 5.7Kg
