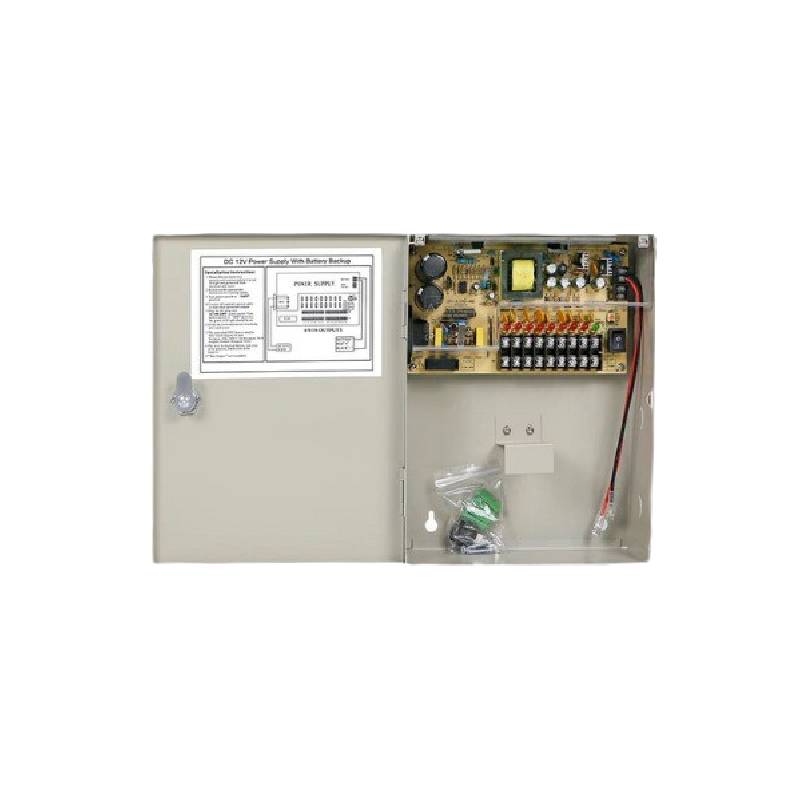

Quant – 12V 10A 9CH UPS Access Control Power Supply Enclosure – QPS10A9CH

See all products from quant

AED 313.95 VAT included

Brand	Quant

Product Code : SS154436 Brand: Quant Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The QPS10A9CH is a 12V 10A 9-channel UPS Power Supply Unit featuring an 85-264VAC input and an adjustable 12V DC output (±10%) with over 85% efficiency. It supports global use and is suitable for sensitive electronics and industrial applications, offering overload, overvoltage, and overtemperature protection with automatic recovery. It provides stable DC output in environments ranging from -10°C to +60°C and supports 20% to 90% humidity.

Features

Flexible DC Output: Adjustable output range allows fine-tuning for specific applications, enhancing compatibility
High Efficiency: Efficiency greater than 85% reduces energy consumption and heat dissipation, promoting longer lifespan and stable operation.
Wide AC Input Range: Supports 85-264VAC, ensuring usability in various regions with different power standards.

Specifications

Brand: Quant
Model: QPS10A9CH
DC Output: DC Voltage: 12V, DC Current: 10A, Ripple & Noise: 80mV, DC Adjustable Range: ±10% of Rated Voltage, Voltage Tolerance: ±2.0%, Line Regulation: ±0.5%, Load Regulation: ±1%
AC Input: AC Voltage Range: 85-264VAC, Frequency Range: 47-63Hz, Efficiency: >85%, AC Current: 0.86A/115V, 0.4A/230V, AC Inrush Current: 20A/115V, 40A/230V, Leakage Current: <0.5mA/240VAC
Protection: Over-load Protection: 105%-150% hiccup mode, auto-recovery, Over-voltage Protection: 115%-135% cut off the output, auto-recovery, Over-temperature Protection: Shutdown output voltage, auto-recovery
Environment: Operating Temperature: -10°C to +60°C (Refer to output load derating curve), Operating Humidity: 20% to 90% RH, non-condensing, Storage Temperature: -10°C to +60°C, Storage Humidity: 10% to 95% RH
Dimensions: 270 x 207 x 85mm
