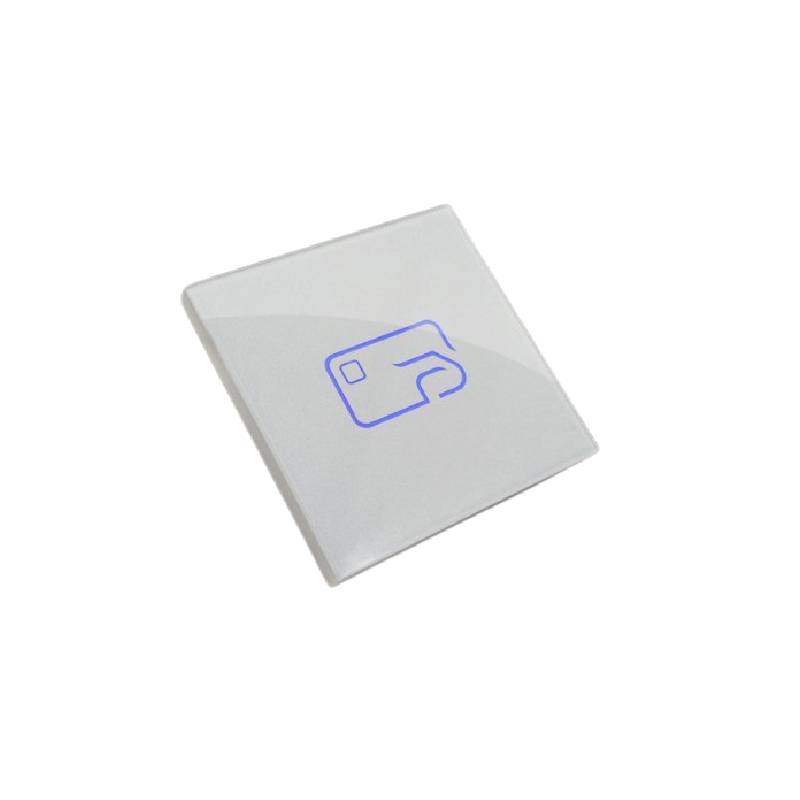

Quant – Dual Frequency RFID Access Reader 3 Working Way, White – Q-573-TGW2F

Name: Quant - Dual Frequency RFID Access Reader 3 Working Way, White - Q-573-TGW2F
SKU: SS154532
Price: 213.73 AED
Availability: InStock

See all products from quant

AED 213.73 VAT included

Compare

Product Code : SS154532 Brand: Quant Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The Q-573-TGW2F is a versatile access control reader designed with an acrylic panel, offering sleek aesthetics and robust functionality. This reader supports both standard ID/IC cards as well as ID copy cards, making it highly adaptable for various access scenarios. It communicates via Wiegand26 and Wiegand34 protocols and operates within a broad voltage range of 9V to 15V DC, ensuring seamless integration with a variety of systems. With a card reading distance of less than 50mm and a transmission distance of up to 80m (under optimal conditions without electromagnetic interference), the Q-573-TGW2F is engineered for high efficiency in both close-range and long-range environments. It operates across two frequency ranges (125KHz and 13.56MHz), providing dual frequency compatibility for broader card support. The reader also boasts reliable environmental resilience, with an operating temperature range of -15°C to 60°C and humidity tolerance from 5% to 95%, making it suitable for various climatic conditions. The device has a compact form factor (86mm x 86mm x 8mm) and is available in white finishes.

Features

Dual-Frequency Support: Operates at both 125KHz and 13.56MHz, enabling compatibility with a wide range of ID/IC cards for enhanced flexibility.
Energy-Efficient: Low operating and standby current consumption (=80mA operating, =30mA standby), ensuring minimal power usage.
Durable and Weather-Resistant: Works reliably in extreme temperatures (-15°C to 60°C) and high humidity (5% to 95%), suitable for outdoor installations.
