Quant – Fire Rated Dual Door Surface Mounted Magnetic Lock with LED Indicator + 2 Pin 280kg/600lbs – QFR-Y280D (LED,2PIN)

Name: Quant - Fire Rated Dual Door Surface Mounted Magnetic Lock with LED Indicator + 2 Pin 280kg/600lbs - QFR-Y280D (LED,2PIN)
SKU: SS154506
Price: 556.66 AED
Availability: InStock

See all products from quant

AED 556.66 VAT included

Compare

Product Code : SS154506 Brand: Quant Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

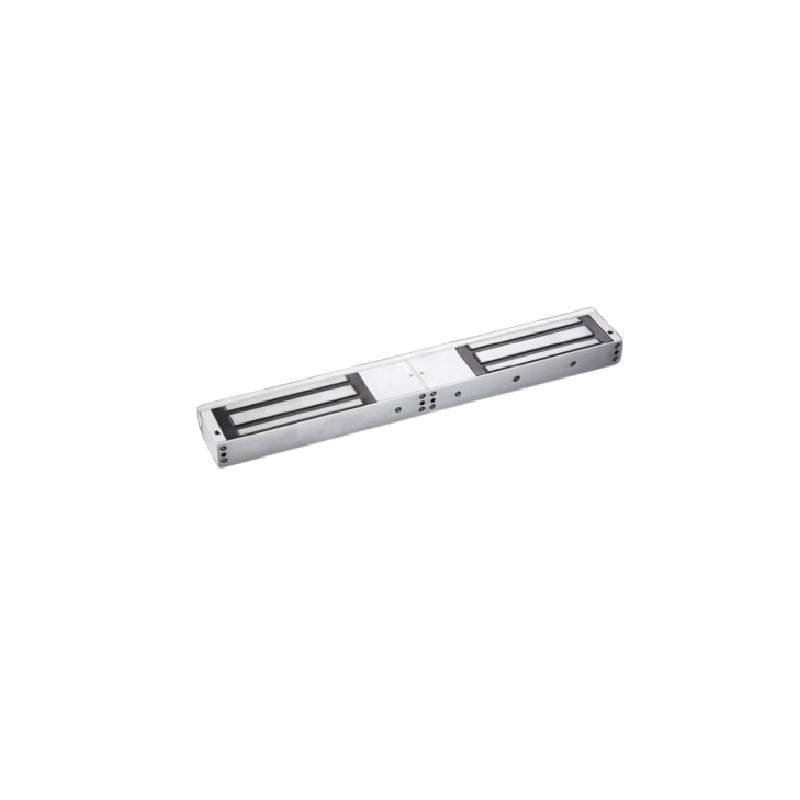

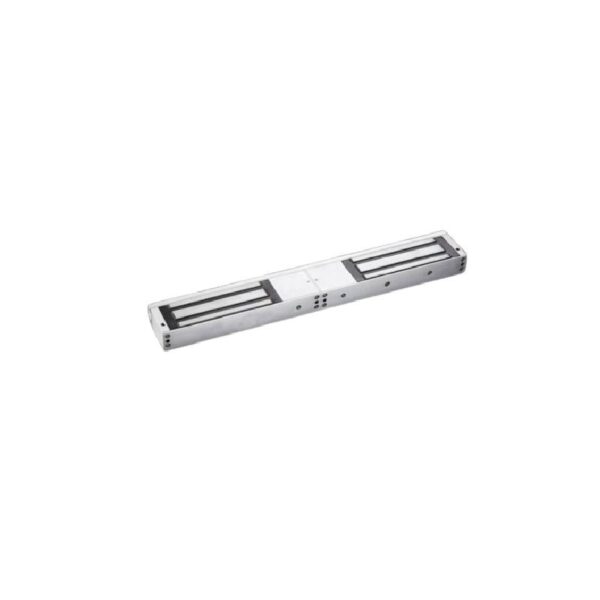

The QFR-Y280D (LED, 2PIN) is a surface-mounted magnetic lock designed for dual door applications, providing a holding force of 280 kg (600 lbs) per door and Fire protection. The lock is equipped with an LED indicator for status monitoring and operates with a 2-pin connection. With a total holding force of 560 kg, this lock ensures secure and reliable access control for high-security environments.

Features

Fail-Safe Operation: Automatically unlocks during a power failure, ensuring safe exit in emergencies
Durable Construction: Built with fire-rated materials to withstand high temperatures and ensure long-term reliability.
Versatile Applications: Suitable for securing dual doors in commercial, residential, and industrial spaces.

Specifications

Brand: Quant
Model: QFR-Y280D (LED,2PIN)
Holding Force: 280 kg (600 lbs) per door, 560 kg total
Working Voltage: 12V DC
Working Current: 400mA at 12V DC, 200mA at 24V DC
Fail-Safe Features: LED Indicator
Application: Designed for dual door installations, suitable for commercial and industrial use
Installation: Surface-mounted
Special feature: Fire Rated
Lock Size: 500mm x 47mm x 25mm
