Quant – Fire Rated Dual Door Surface Mounted Magnetic Lock with LED Indicator + 2 Pin 280kg/600lbs – QFR-Y280D (LED,2PIN)
AED 556.66 VAT included
Quant – Fire Rated Dual Door Surface Mounted Magnetic Lock with LED Indicator + 2 Pin 280kg/600lbs – QFR-Y280D (LED,2PIN)
Product Code : SS154506
Brand: Quant
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

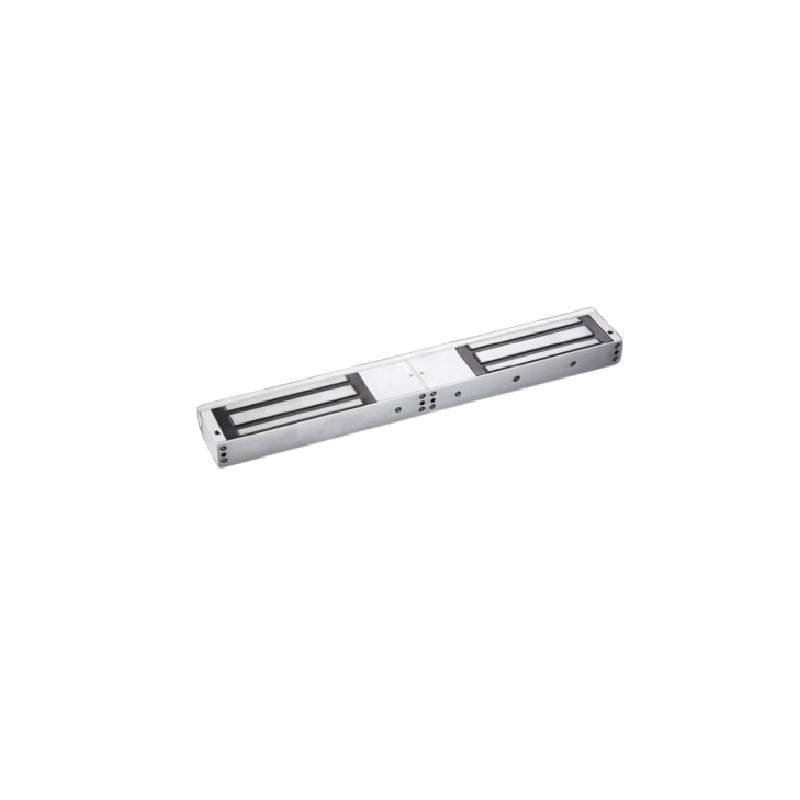

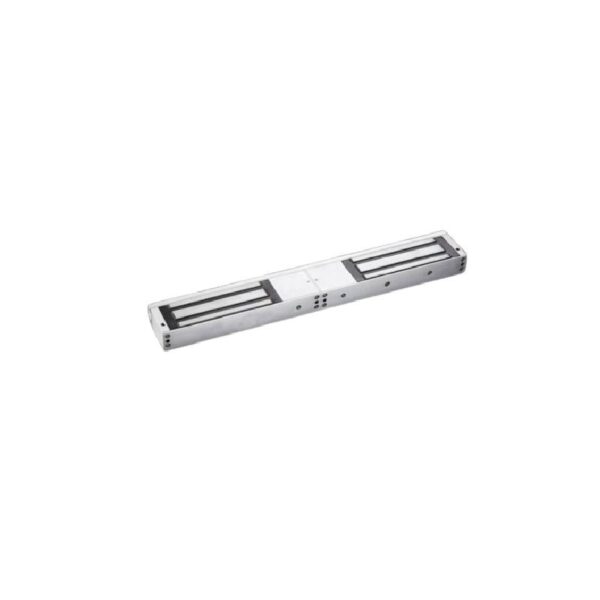

The QFR-Y280D (LED, 2PIN) is a surface-mounted magnetic lock designed for dual door applications, providing a holding force of 280 kg (600 lbs) per door and Fire protection. The lock is equipped with an LED indicator for status monitoring and operates with a 2-pin connection. With a total holding force of 560 kg, this lock ensures secure and reliable access control for high-security environments.
Features
- Fail-Safe Operation: Automatically unlocks during a power failure, ensuring safe exit in emergencies
- Durable Construction: Built with fire-rated materials to withstand high temperatures and ensure long-term reliability.
- Versatile Applications: Suitable for securing dual doors in commercial, residential, and industrial spaces.
Specifications
- Brand: Quant
- Model: QFR-Y280D (LED,2PIN)
- Holding Force: 280 kg (600 lbs) per door, 560 kg total
- Working Voltage: 12V DC
- Working Current: 400mA at 12V DC, 200mA at 24V DC
- Fail-Safe Features: LED Indicator
- Application: Designed for dual door installations, suitable for commercial and industrial use
- Installation: Surface-mounted
- Special feature: Fire Rated
- Lock Size: 500mm x 47mm x 25mm
