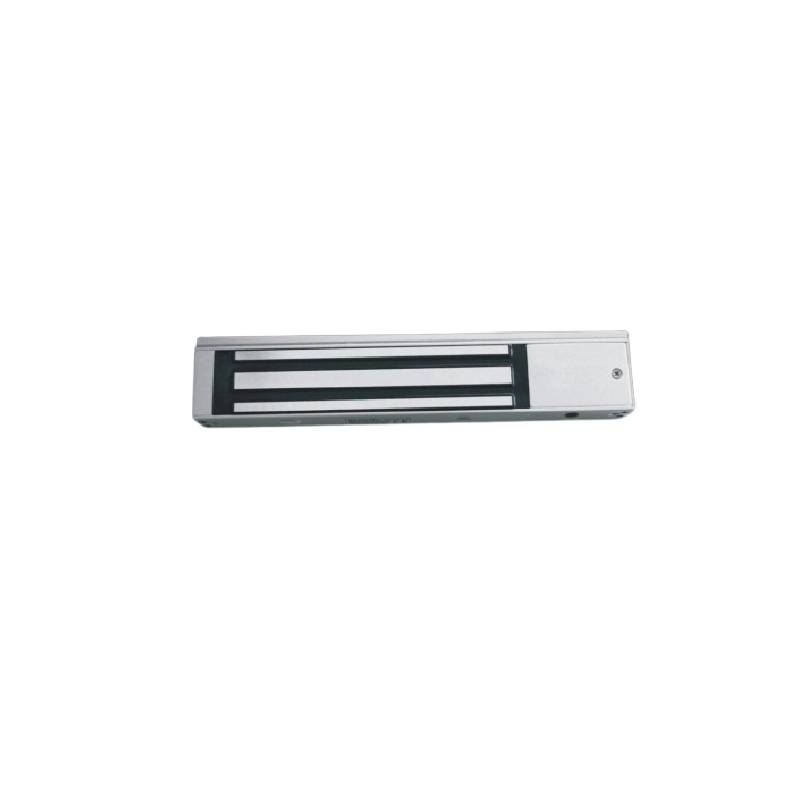

Quant – Fire Rated Electro Magnetic Lock with LED Indicator 500kg/1200lbs – QFR-Y500 (LED)
AED 569.94 VAT included
Quant – Fire Rated Electro Magnetic Lock with LED Indicator 500kg/1200lbs – QFR-Y500 (LED)
Product Code : SS154505
Brand: Quant
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The QFR-Y500 (LED) is a robust electromagnetic lock designed to provide secure locking with a holding force of 500 kg (1200 lbs), and Fire protection. This lock is equipped with an LED indicator for visual status monitoring and features a 2-pin connection for straightforward installation. It is ideal for high-security environments where reliable access control is essential.
Features
- Fail-Safe Operation: Automatically unlocks during a power failure, allowing safe egress in emergencies
- Fire-Rated Construction: Crafted with fire-resistant materials to ensure durability and safety in fire situations
- Versatile Use: Suitable for fire-rated doors in commercial spaces, offices, and facilities requiring both security and compliance with fire safety standards
Specifications
- Brand: Quant
- Model: QFR-Y500 (LED)
- Holding Force: 500 kg (1200 lbs)
- Voltage: 12V/500mA x 2 or 24V/250mA x 2
- Holding Time: Up to 3 hours
- Connection: 2-pin
- Application: Suitable for high security doors in commercial, industrial, and institutional settings
- Installation: Surface-mounted
