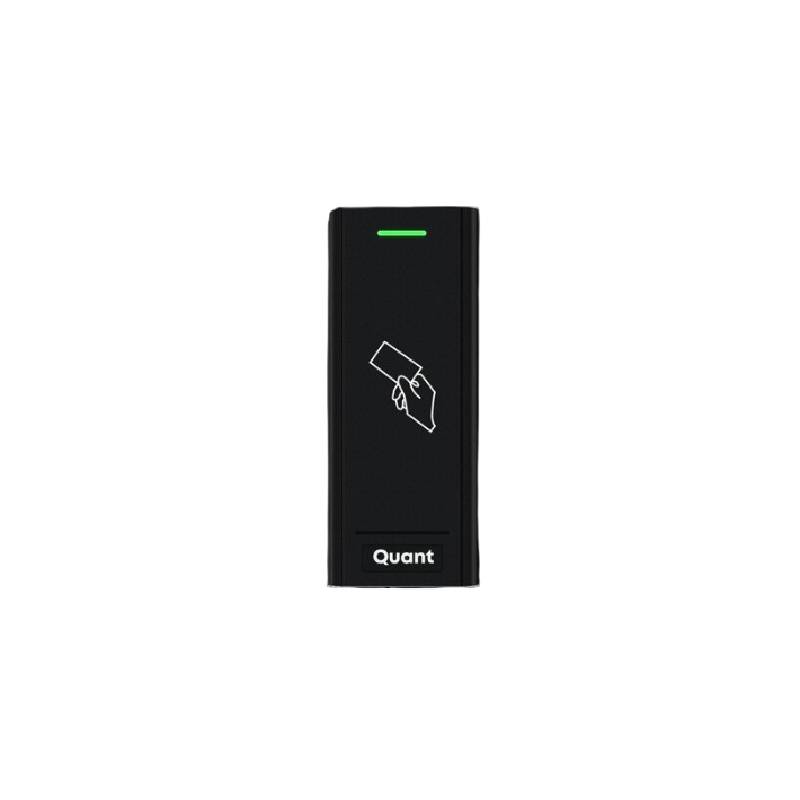

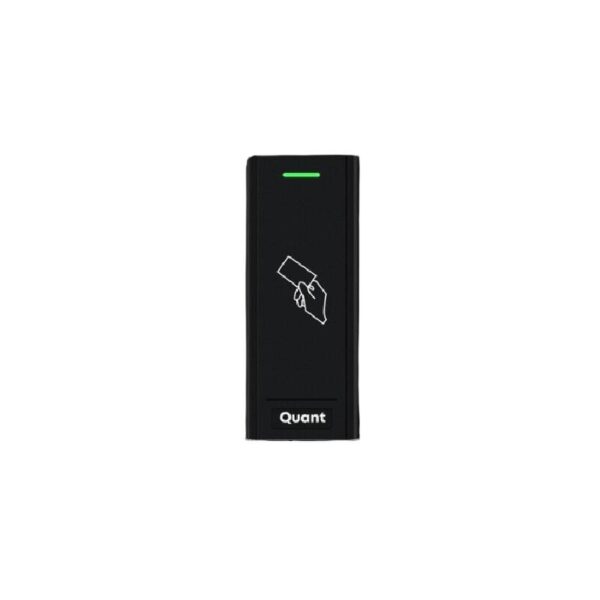

Quant – OSDP/Weigand Multi Technology Card Reader, 120mm x 50mm x 20mm – Q-X6-RX
AED 392.44 VAT included
Quant – OSDP/Weigand Multi Technology Card Reader, 120mm x 50mm x 20mm – Q-X6-RX
Product Code : SS154503
Brand: Quant
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Q-X6-RX is a robust and versatile OSDP reader designed to provide secure and efficient access control. With compatibility for both OSDP and Wiegand controllers (optional), this device ensures seamless integration into a variety of access control systems. The Q-X6-RX supports multiple card technologies, including 125kHz HID, EM, and 13.56MHz Mifare, ensuring flexibility in card use. Built with an IP66 waterproof rating, the reader is well-suited for both indoor and outdoor applications, making it reliable even in harsh environments. Its modern design and advanced functionality make it ideal for organizations seeking to enhance their security infrastructure.
Features
- Dual Compatibility: The Q-X6-RX supports both OSDP and Wiegand protocols, making it compatible with a wide range of access control systems. This flexibility ensures that it can easily fit into both mod ern and legacy setups, reducing installation costs and complexity.
- Durability with IP66 Rating: With its IP66 rating, the Q-X6-RX is built to withstand challenging environments, from dust-heavy industrial areas to outdoor installations exposed to rain or high-pressure water. This enhances the longevity of the product, reducing the need for frequent replacements or maintenance.
- Enhanced Security with OSDP: The OSDP protocol offers higher security through encrypted communication between the reader and the controller. This prevents tampering or unauthorized access, ensuring that the system is secure against modern threats.
Specifications
- Brand: Quant
- Model: Q-X6-RX
- Material: Polycarbonate UV-Resistant Housing (Suitable for harsh environment)
- Protocols Supported: OSDP (Open Supervised Device Protocol) and Wiegand (Optional for backward compatibility)
- Ingress Protection: IP66 (Dust-tight, water-resistant)
- Card Compatibility: 125kHz (HID, EM) and 13.56MHz (NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K, CPU cards
- Operating Voltage: 9-18V DC
- Reading Distance: 2-4cm
- Operating Temperature: -40°C to 60°C
- Operating Humidity: 0% ~ 98% RH
- Dimensions: 120mm x 50mm x 20mm
- Net Weight: 150g
