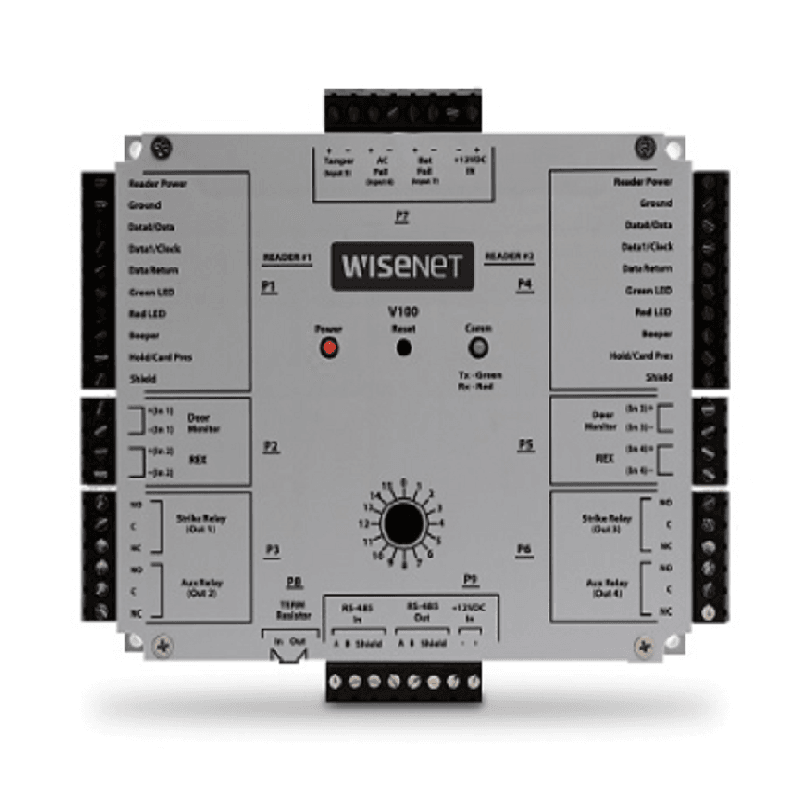

Samsung Hanwha Wisenet V100 Centralized Controller
AED 2,625.00 VAT included
Samsung Hanwha Wisenet V100 Centralized Controller. The HID VertX™ products provide a complete and fully featured hardware/firmware infrastructure for access control software host systems. The V100 Door/Reader
interface connects two access control card readers via Wiegand or Clockand-Data interface, controlling either
one or two doors.
Out of stock
Product Code : SS14005
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Samsung Hanwha Wisenet V100 Centralized Controller. The HID VertX™ products provide a complete and fully featured hardware/firmware infrastructure for access control software host systems. The V100 Door/Reader
interface connects two access control card readers via Wiegand or Clockand-Data interface, controlling either
one or two doors. The V100 features on-board flash memory, enabling program updates to be downloaded via the network.
Features
- Reports supervised inputs.
- Connects to the V1000 via RS-485.
- Processes off-line access control decisions based on facility code.
- UL® 294 and UL® 1076 recognized components.
- Receives and processes real-time commands from the V1000.
- Reports all activity to the V1000.
- All connections and indicators are fully identified by silk-screened nomenclature on the cover.
- Attractive polycarbonate enclosure protects components from damage.
Specifications
- Dimensions : 5.8" W x 4.825" H x 1.275" D (147.32 mm x 122.55 mm x 32.38 mm)
- Operating Temperature : 32° to 122° F (0° to 50° C)
- Power Supply Requirements : 60 mA @ 9–18 VDC (with no readers connected)
- Communications Ports : RS-485 — two wire. Two SIA standard Wiegand/Clock-and-Data ports
- Certifications : UL® 294 and UL® 1076 Recognized Component for the US, CSA 205 for Canada, FCC Class A Verification, EMC for Canada, EU (CE Mark), Australia (C-Tick Mark), New Zealand, Japan, EN 50130-4 Access Control Systems Immunity for the EU (CE Mark)
