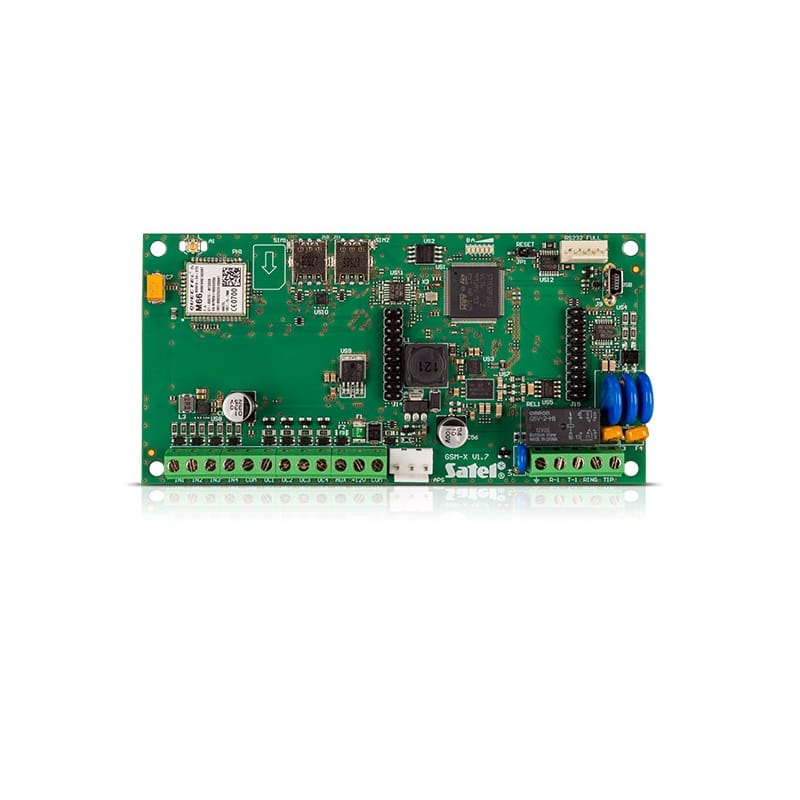

Satel GSM-X Universal Multi–Purpose GSM/GPRS Communication Module
AED 887.25 VAT included
Product Code : SS11755
Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in UAE
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Satel GSM-X Universal Multi–Purpose GSM/GPRS Communication Module offers extensive communication functionality and support for multiple communication paths. This device can be used to carry out reporting in alarm systems. For this purpose, it uses a connection established via the dialer of any alarm control panel or its appropriately configured outputs. An important feature the communicator offers is the expansion capability by adding the GSM–X–ETH Ethernet module, so that reporting can be implemented through two independent channels
(Ethernet and GPRS).
Features
- Dual Path Reporting support according to EN 50136* for DP4 category
- Conversion of telephone reporting into audio/SMS/Ethernet*/GPRS formats
- Sending notifications to max. 8 phone numbers
- Configuration using GX Soft software: Locally via USB and r=Remotely via Ethernet* or GPRS
- Interaction with GX CONTROL mobile application
- 4 outputs (OC) controlled by SMS/CLIP/DTMF/GX CONTROL/GX Soft
- Possibility to check the pre–paid account balance and send notification if it drops below required minimum
- Telephone line simulation via GSM – GSM gateway
Specifications
- Brand: Satel
- Product: Communication Module
- Number of OC outputs: 4, Number of inputs (zones): 4
- Enclosure dimensions: 126 x 158 x 46 mm, Board dimensions: 141 x 70 mm, Weight: 255 g
- Operating temperature range: -10...+55°C
- Standby mode current consumption: 100 mA
- Max. current consumption: 275 mA
- Supply voltage: 12 V DC
- OC type outputs: 50 mA / 12 V DC
- AUX output: 300 mA / 12 V DC
